IRU3037CSTR

IRU3037CSTR, pwm controller, 30V, 100ns, 8mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.35~0.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.35 / Piece

PartNumber:: IRU3037CSTR

Brand:: International Rectifier - IR | Pack: SOP | D/C: 05+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-24

From Other Seller

Part Number:IRU3037CSTR
US $0.35 - 0.35
Quantity:

piece

Product Summary

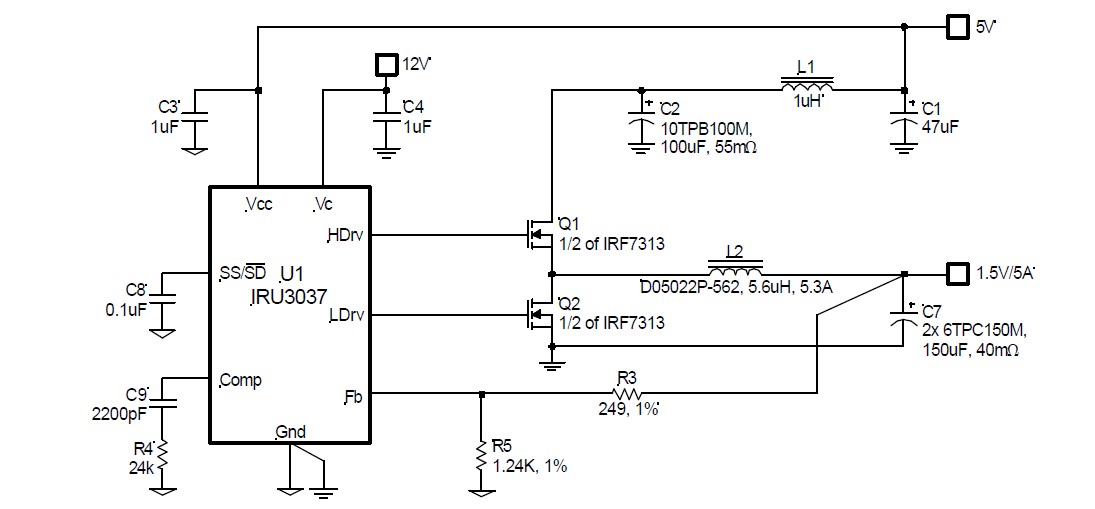

The IRU3037CSTR is an 8-pin synchronous pwm controller designed to provide a low cost synchronous Buck regulator for on-board DC to DC converter applications. With the migration of todays ASIC products requiring low supply voltages such as 1.8V and lower, together with currents in excess of 3A, traditional linear regulators are simply too lossy to be used when input supply is 5V or even in some cases with 3.3V input supply. The IRU3037CSTR together with dual N-channel MOSFETs such as IRF7313, provide a low cost solution for such applications. The IRU3037CSTR features an internal 200KHz oscillator (400KHz for "A" version), under-voltage lockout for both Vcc and Vc supplies, an external programmable soft-start function as well as output under- voltage detection that latches off the device when an output short is detected.

Parametrics

IRU3037CSTR absolute maximum ratings: (1)Vcc Supply Voltage: 25V; (2)Vc Supply Voltage: 30V (not rated for inductive load); (3)Storage Temperature Range: -65℃ To 150℃; (4)Operating Junction Temperature Range: 0℃ To 125℃; (5)Vcc Dynamic Supply Current: 8mA; (6)Rise Time: 100ns.

Features

IRU3037CSTR features: (1)Synchronous Controller in 8-Pin Package; (2)Operating with single 5V or 12V supply voltage; (3)Internal 200KHz Oscillator (400KHz for IRU3037A); (4)Soft-Start Function; (5)Fixed Frequency Voltage Mode; (6)500mA Peak Output Drive Capability; (7)Protects the output when control FET is shorted.
