IRU3004CWTR

IRU3004CWTR, controller IC, 10V, 260KHz, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50000 :	1.00 / Piece

PartNumber:: IRU3004CWTR

Brand:: International Rectifier - IR | Pack: SOP | D/C: 06+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-24

From Other Seller

Part Number:IRU3004CWTR
US $1.00 - 1.00
Quantity:

piece

Product Summary

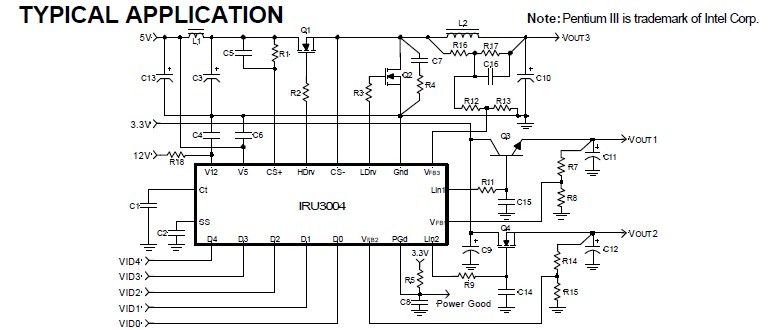

The IRU3004CWTR controller IC is specifically designed to meet Intel specifications for Pentium III microprocessor applications as well as the next generation P6 family processors. The IRU3004CWTR provides a single chip controller IC for the Vcore, GTL+ and clock supplies required for the Pentium III applications. Applications are (1)Pentium III & next generation processor DC to DC converter application; (2)Low Cost Pentium with AGP.

Parametrics

IRU3004CWTR absolute maximum ratings: (1)V5 Supply Voltage : 10V; (2)V12 Supply Voltage : 20V; (3)Storage Temperature Range : -65°C To 150°C; (4)Operating Junction Temperature Range : 0°C To 125°C; (5)Operating Supply Current: 20mA; (6)Osc Frequency: 160 to 260KHz.

Features
