Product Summary
The EPF10K50VRC240-3 is an embedded programmable logic device.
Parametrics
EPF10K50VRC240-3 absolute maximum ratings: (1)Supply voltage:–2.0 to 7.0 V; (2)DC input voltage:–2.0 to 7.0 V; (3)DC output current, per pin: –25 to 25 mA; (4)Storage temperature: –65 to 150 ° C; (5)Ambient temperature: –65 to 135 ° C.
Features
EPF10K50VRC240-3 features: (1)MultiVolt I/O interface support; (2)5.0-V tolerant input pins in FLEX 10KA devices; (3)Low power consumption (typical specification less than 0.5 mA in standby mode for most devices); (4)FLEX 10K and FLEX 10KA devices support peripheral component interconnect Special Interest Group (PCI SIG)PCI Local Bus Specification, Revision 2.2; (5)FLEX 10KA devices include pull-up clamping diode, selectable on a pin-by-pin basis for 3.3-V PCI compliance; (6)Select FLEX 10KA devices support 5.0-V PCI buses with eight or fewer loads; (7)Built-in Joint Test Action Group (JTAG)boundary-scan test (BST)circuitry compliant with IEEE Std. 1149.1-1990, available without consuming any device logic.

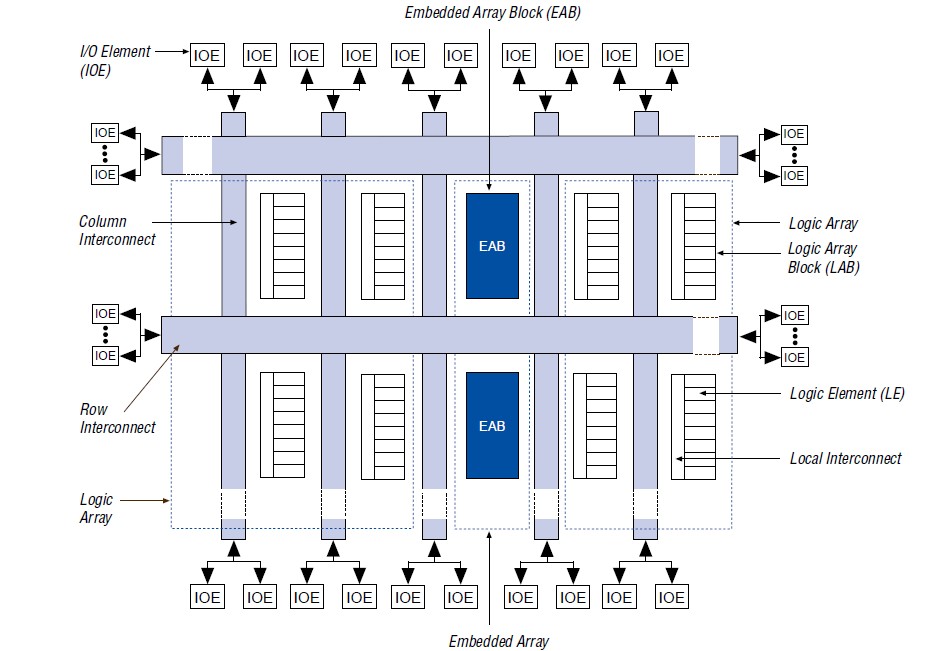

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPF10K50VRC240-3 |
|
IC FLEX 10KV FPGA 50K 240-RQFP |
Data Sheet |
|
|
||||||
|
EPF10K50VRC240-3N |
|
IC FLEX 10KV FPGA 50K 240-RQFP |
Data Sheet |
|
|
||||||
