Product Summary
The BC847A is a general purpose transistor.
Parametrics
BC847A absolute maximum ratings: (1)Collector-Emitter Voltage: 45V; (2)Collector−Base Voltage: 50V; (3)Collector Current − Continuous IC: 100 mAdc; (4)Total Device Dissipation FR− 5 Board, (Note 1)TA = 25°C Derate above 25°C PD: 225 mW; (5)Junction and Storage Temperature Range TJ, Tstg: −55 to +150 °C.
Features
BC847A features: (1)Pb−Free Packages are Available; (2)Moisture Sensitivity Level: 1; (3)ESD Rating − Human Body Model: >4000 V, ESD Rating − Machine Model: >400 V.

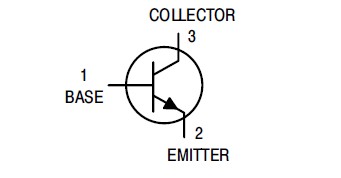

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BC847A |
Taiwan Semiconductor |
Transistors Bipolar (BJT) Transistor 200mW |
Data Sheet |
|
|
|||||||||||||
BC847A /T3 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS GP TAPE-13 |
Data Sheet |
Negotiable |
|
|||||||||||||
BC847A-7 |
Diodes Inc. |
Transistors Bipolar (BJT) NPN BIPOLAR |
Data Sheet |
Negotiable |
|
|||||||||||||
BC847ALTI |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
BC847AT |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
BC847AW,115 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS GP TAPE-7 |
Data Sheet |
|
|
|||||||||||||
BC847AT,115 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS GP TAPE-7 |
Data Sheet |
|
|
|||||||||||||
BC847AW-7-F |
Diodes Inc. |
Transistors Bipolar (BJT) NPN BIPOLAR |
Data Sheet |
|
|
