Product Summary

The BC517 is an NPN general purpose amplifier.

Parametrics

BC517 absolute maximum ratings: (1)VCEO Collector-Emitter Voltage: 30 V; (2)VCES Collector-Base Voltage: 40 V; (3)VEBO Emitter-Base Voltage: 10 V; (4)IC Collector Current - Continuous: 1.2 A; (5)TJ, Tstg Operating and Storage Junction Temperature Range: -55 to +150 °C.

Features

BC517 features: (1)This device is designed for applications requiring extremely high current gain at currents to 1.0A; (2)Sourced from process 05.

Diagrams

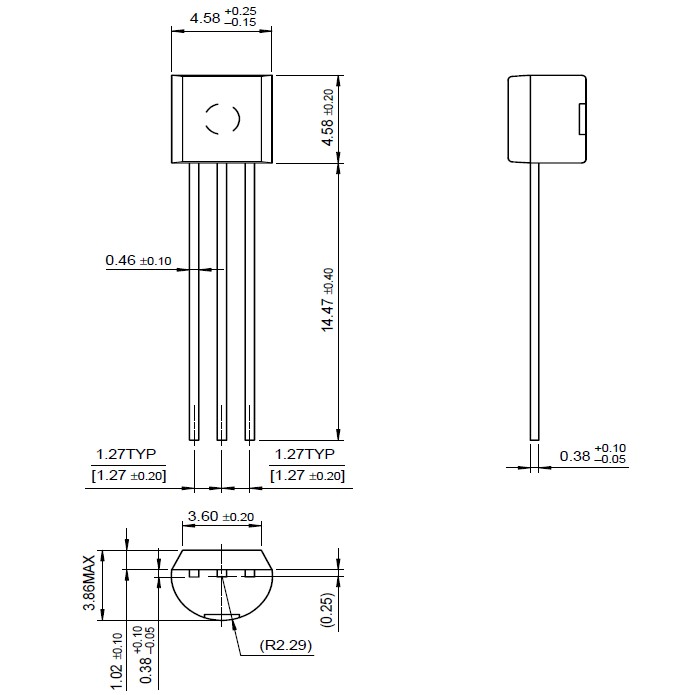

BC517 pin connection
