Product Summary
The AN7312 is a monolithic integrated circuit designed for dual pre-amplifier circuit with ALC for record/playback amplifier of cassette tape recorder.
Parametrics
AN7312 absolute maximum ratings: (1)supply voltage: 14V; (2)supply current: 50mA; (3)power dissipation: 700mW; (4)operating ambient temperature: -20 to +75℃; (5)storage temperature: -55 to +150℃.
Features
AN7312 features: (1)High open loop gain; (2)incoporates ALC detector circuit; (3)no input coupling condenser; (4)low noise; (5)low current consumption; (6)wide ALC range; (7)wide operating voltage range; (8)low power ON shock noise.

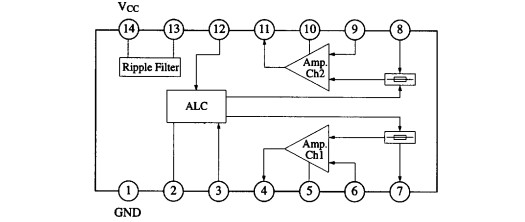

Diagrams
