ADP3334AR

ADP3334AR, adjustable low dropout regulator, 16 V, 1.0 uA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	1.00 / Piece

PartNumber:: ADP3334AR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-25

From Other Seller

Part Number:ADP3334AR
US $1.00 - 1.00
Quantity:

piece

Product Summary

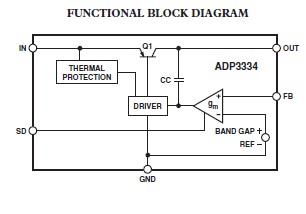

The ADP3334AR is a adjustable low dropout regulator. The ADP3334AR operates with an input voltage range of 2.6 V to 11 V and delivers a continuous load current up to 500 mA. The novel anyCAP architecture requires only a very small 1 uF output capacitor for stability, and the LDO is insensitive to the capacitor equivalent series resistance (ESR). This makes the ADP3334AR stable with any capacitor, including ceramic (MLCC) types for space restricted applications.

Parametrics

ADP3334AR absolute maximum ratings: (1)Input Supply Voltage: －0.3 V to +16 V; (2)Shutdown Input Voltage: －0.3 V to +16 V; (3)Power Dissipation: Internally Limited; (4)Operating Ambient Temperature Range: －40℃ to +85℃; (5)Operating Junction Temperature Range: －40℃ to +150℃; (6)Storage Temperature Range: －65℃ to +150℃.

Features

ADP3334AR features: (1)Current and Thermal Limiting; (2)Low Noise; (3)Low Shutdown Current: < 1.0 uA (Typ); (4)2.6 V to 11 V Supply Range; (5)1.5 V to 10 V Output Range; (6)－40℃ to +85℃ Ambient Temperature Range.
