Product Summary

The ADG708BRUZ is low voltage, CMOS analog multiplexers comprising eight single channels and four differential channels respectively. The ADG708BRUZ switche one of eight inputs (S1–S8) to a common output, D, as determined by the 3-bit binary address lines A0, A1, and A2. The ADG708BRUZ switche one of four differential inputs to a common differential output as determined by the 2-bit binary address lines A0 and A1. An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched OFF.

Parametrics

ADG708BRUZ absolute maximum ratings: (1)VDD to VSS: 7 V; (2)VDD to GND: –0.3 V to +7 V; (3)VSS to GND: +0.3 V to –3.5 V; (4)Continuous Current, S or D: 30 mA; (5)Operating Temperature Range Industrial (B, C Versions): –40°C to +85°C; (6)Storage Temperature Range: –65°C to +150°C; (7)Junction Temperature: 150°C.

Features

ADG708BRUZ features: (1)1.8 V to 5.5 V Single Supply; (2)63 V Dual Supply; (3)3 V On-Resistance; (4)0.75 V On-Resistance Flatness; (5)100 pA Leakage Currents; (6)14 ns Switching Times; (7)Single 8-to-1 Multiplexer ADG708; (8)Differential 4-to-1 Multiplexer ADG709; (9)16-Lead TSSOP Package; (10)Low Power Consumption; (11)TTL/CMOS-Compatible Inputs.

Diagrams

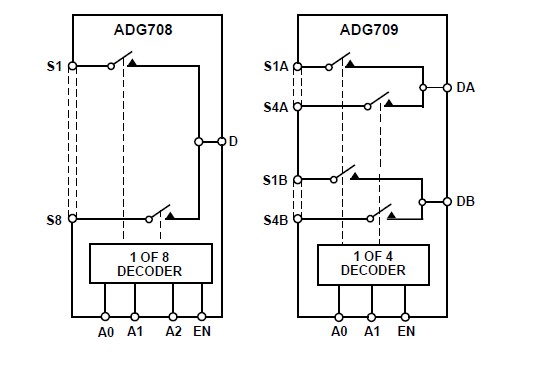

ADG708BRUZ pin connection
