Product Summary
The AD9322 is a monolithic high speed video signal multiplexer usable in a wide variety of applications. Its four channels of video input signals can be randomly switched at megahertz rates to the single output. In addition, multiple devices can be configured in either parallel or cascade arrangements to form switch matrices. This flexibility in using the AD9322 is possible because the output of the device is in a high-impedance state when the chip is not enabled; when the chip is enabled, the unit acts as a buffer with a high input impedance and low output impedance. The applications of the AD9322 include Video Routing, Medical Imaging, Electro Optics, ECM Systems, Radar Systems, and Data Acquisition.
Parametrics
AD9322 absolute maximum ratings: (1)Supply Voltages (±VS): ±16 V; (2)Analog Input Voltage Each Input (IN1 thru IN4): ±3.5 V; (3)Differential Voltage Between Any Two Inputs (IN1 thru IN4): 5V; (4)Digital Input Voltages (A0, A1, ENABLE):–0.5V to +5.5V; (5)Output Current Sinking: 6.0mA; (6)Sourcing: 6.0mA; (7)Operating Temperature Range AD9300KQ/KP: 0℃ to +70℃; (8)Storage Temperature Range: –65℃ to +150℃; (9)Junction Temperature: +175℃; (10)Lead Soldering (10 sec): +300℃.
Features
AD9322 features: (1)34 MHz Full Power Bandwidth; (2)±0.1 dB Gain Flatness to 8 MHz; (3)72 dB Crosstalk Rejection @ 10 MHz; (4)0.03°/0.01% Differential Phase/Gain; (5)Cascadable for Switch Matrices; (6)MIL-STD-883 Compliant Versions Available.

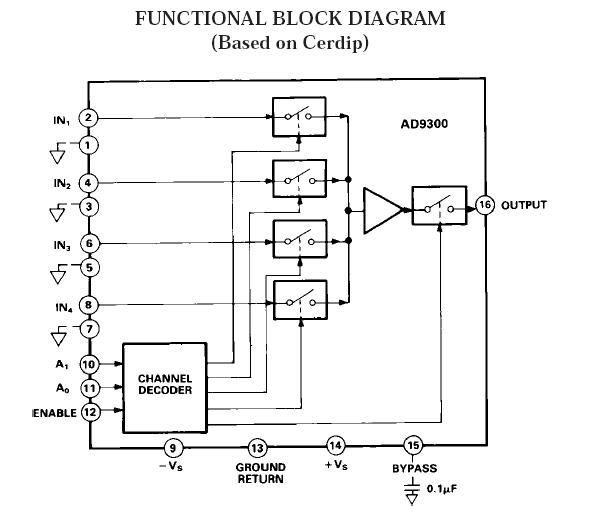

Diagrams
