74LVT574MTCX

74lvt574mtcx, 3.3V Octal D-type flip-flop, -0.5V to +4.6V, 128mA, dip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.09~0.09 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	0.09 / Piece

PartNumber:: 74LVT574MTCX

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: | D/C: 10+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-25

From Other Seller

Part Number:74LVT574MTCX
US $0.09 - 0.09
Quantity:

piece

Product Summary

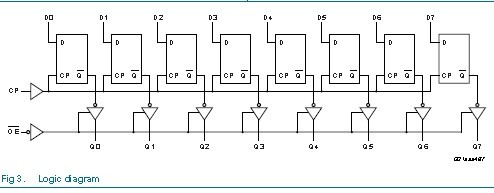

The 74lvt574mtcx is a 3.3V Octal D-type flip-flop. The 74lvt574mtcx is an 8-bit, edge triggered register coupled to eight 3-State output buffers. The two sections of the 74lvt574mtcx are controlled independently by the clock (CP) and Output Enable (OE) control gates. The state of each D input (one set-up time before the Low-to-High clock transition) is transferred to the corresponding flip-flop’s Q output.

Parametrics

74lvt574mtcx absolute maximum ratings: (1)VCC DC supply voltage:–0.5 to +4.6 V; (2)IIK DC input diode current VI＜0 :–50mA; (3)VI DC input voltage3: –0.5 to +7.0V; (4)IOK DC output diode current VO＜0:–50mA; (5)VOUT DC output voltage3 Output in Off or High state:–0.5 to +7.0V; (6)IO DC output current Output in Low state 128mA; (7)Output in High state: –64mA; (8)Tstg Storage temperature range: –65 to 150℃.

Features

74lvt574mtcx features: (1)Inputs and outputs on opposite side of package allow easy interface to microprocessors; (2)3-State outputs for bus interfacing; (3)Common output enable; (4)TTL input and output switching levels; (5)Input and output interface capability to systems at 5V supply; (6)Bus-hold data inputs eliminate the need for external pull up resistors to hold unused inputs; (7)Live insertion/extraction permitted; (8)No bus current loading when output is tied to 5V bus; (9)Power-up 3-State; (10)Power-up reset; (11)Latch-up protection exceeds 500mA per JEDEC Std 17; (12)ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model.
