74ACTQ04MTCX

74ACTQ04MTCX, quiet series hex inverter, 7.0 V, 20 mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.13~0.13 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2500 :	0.13 / Piece

PartNumber:: 74ACTQ04MTCX

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 01+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-10

From Other Seller

Part Number:74ACTQ04MTCX
US $0.13 - 0.13
Quantity:

piece

Product Summary

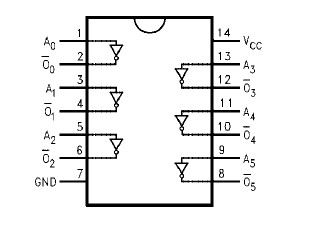

The 74ACTQ04MTCX is a quiet series hex inverter. The 74ACTQ04MTCX contains six inverters and utilizes Fairchild Quiet Series technology to guarantee quiet output switching and improved dynamic threshold performance. FACT Quiet Series features GTO output control and undershoot corrector in addition to a split ground bus for superior ACMOS performance.

Parametrics

74ACTQ04MTCX absolute maximum ratings: (1)Supply Voltage (VCC): ﹣0.5V to ﹢7.0V; (2)DC Input Diode Current (IIK)VI ﹣0.5V: ﹣20 mA; (3)DC Input Diode Current (IIK)VI VCC ﹢ 0.5V: ﹢20 mA; (4)DC Input Voltage (VI): ﹣0.5V to VCC ﹢ 0.5V; (5)DC Output Diode Current (IOK)VO ﹣0.5V: ﹣20 mA; (6)DC Output Diode Current (IOK)VO VCC ﹢ 0.5V: ﹢20 mA; (7)DC Output Voltage (VO): ﹣0.5V to VCC ﹢0.5V; (8)DC Output Source or Sink Current (IO): ±50 mA; (9)DC VCC or Ground Current per Output Pin (ICC or IGND): ±50 mA; (10)Storage Temperature (TSTG): ﹣65℃ to ﹢150℃; (11)DC Latch-up Source or Sink Current: ±300 mA; (12)Junction Temperature (TJ)PDIP: 140℃.

Features

74ACTQ04MTCX features: (1)ICC reduced by 50%; (2)Guaranteed simultaneous switching noise level and dynamic threshold performance; (3)Improved latch-up immunity; (4)Outputs source/sink 24 mA; (5)Has TTL-compatible inputs.
