Product Summary
The 2SB1218A(TX) is a silicon PNP epitaxial planar type.
Parametrics
2SB1218A(TX) absolute maximum ratings: (1)Collector-base voltage (Emitter open): -45 V; (2)Collector-emitter voltage (Base open): -45 V; (3)Emitter-base voltage (Collector open): -7 V; (4)Collector current: -100 mA; (5)Peak collector current: -200 mA; (6)Collector power dissipation: 150 mW; (7)Junction temperature: 150 °C; (8)Storage temperature: -55 to +150 °C.
Features
2SB1218A(TX) features: (1)High forward current transfer ratio hFE; (2)S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing.

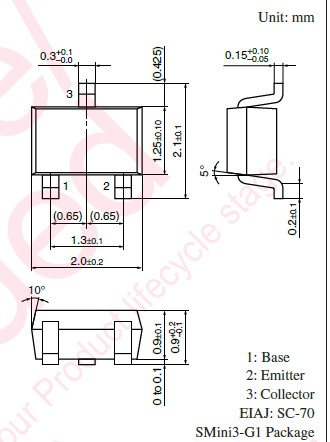

Diagrams
