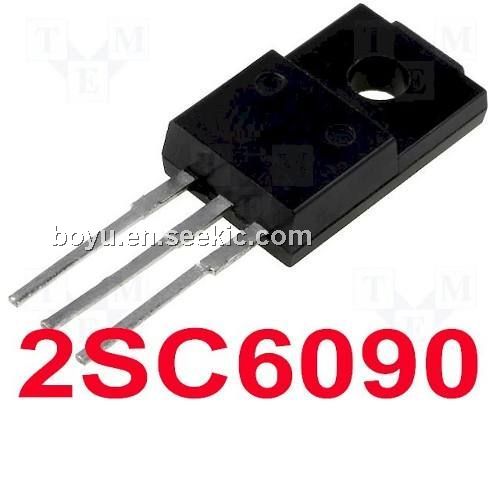

Product Summary

The 2SC6090 is an NPN triple diffused planar silicon transistor. The 2SC6090 is ideal for color TV horizontal deflection output applications.

Parametrics

2SC6090 absolute maximum ratings: (1)Collector-to-Base Voltage VCBO: 1500 V; (2)Collector-to-Emitter Voltage VCEO: 700 V; (3)Emitter-to-Base Voltage VEBO: 5 V; (4)Collector Current IC: 10 A; (5)Collector Current (Pulse)ICP: 25 A; (6)Collector Dissipation PC 2.0 W, Tc=25°C: 35 W; (7)Junction Temperature Tj: 150 °C; (8)Storage Temperature Tstg: -55 to +150 °C.

Features

2SC6090 features: (1)High speed; (2)High breakdown voltage (VCBO=1500V); (3)Adoption of high reliability HVP process; (4)Adoption of MBIT process.

Diagrams

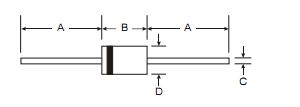

2SC6090 pin connection
