TPD2E001DRLR

tpd2e001drlr, low-capacitance 2-channel ESD-protection array, SON, -0.3 to 7 V, 100nA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.27~0.27 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 4000 :	0.27 / Piece

PartNumber:: TPD2E001DRLR

Brand:: Texas Instruments - TI | D/C: 10+

Availability:: Supply Ability: 4000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-10

From Other Seller

Part Number:TPD2E001DRLR
US $0.27 - 0.27
Quantity:

piece

Product Summary

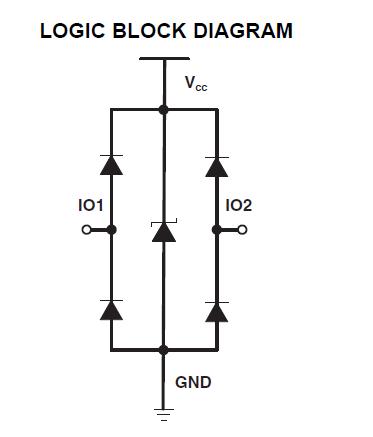

The tpd2e001drlr is a low-capacitance ±15-kV ESD-protection diode array designed to protect sensitive electronics attached to communication lines. Each channel consists of a pair of diodes that steer ESD current pulses to VCC or GND. The tpd2e001drlr protects against ESD pulses up to ±15-kV Human-Body Model (HBM), ±8-kV Contact Discharge, and ±15-kV Air-Gap Discharge, as specified in IEC 61000-4-2. This device has a 1.5-pF capacitance per channel, making it ideal for use in high-speed data IO interfaces. The applications of the TPD2E001DRYR include USB 2.0, Ethernet, FireWire, Video, Cell Phones, SVGA Video Connections, Glucosemeters.

Parametrics

tpd2e001drlr absolute maximum ratings: (1)VCC: -0.3 to 7 V; (2)VIO: -0.3 to VCC + 0.3 V; (3)Tstg Storage temperature range: -65 to 150℃; (4)TJ Junction temperature: 150℃; (5)Bump temperature (soldering), Infrared (15 s): 220℃; Vapor phase (60 s) 215℃; Lead temperature (soldering, 10 s) 300℃.

Features

tpd2e001drlr features: (1)ESD Protection Exceeds, ±15-kV Human-Body Model (HBM); ±8-kV IEC 61000-4-2 Contact Discharge; ±15-kV IEC 61000-4-2 Air-Gap Discharge; (2)Low 1.5-pF Input Capacitance; (3)Low 1-nA (Max) Leakage Current; (4)Low 1-nA Supply Current; (5)0.9-V to 5.5-V Supply-Voltage Range; (6)Two-Channel Device; (7)Space-Saving DRL, DRY, and QFN Package Options; (8)Alternate 3-, 4-, 6-Channel Options Available: TPD3E001, TPD4E001, and TPD6E001.
