Product Summary

The stps3150u is a 150V Power Schottky rectifier. The stps3150u is suited for switch Mode Power Supplies on up to 24V rails and high frequency converters. Packaged in SMB and Axial, the stps3150u is intended for use in consumer & computer applications like TV, STB, PC and DVD where low drop forward voltage in required to reduce power dissipation.

Parametrics

stps3150u absolute maximum ratings: (1)VRRM Repetitive peak reverse voltage: 150 V; (2)IF(RMS)RMS forward current: 15 A; (3)IF(AV)Average forward current TL = 130°C d = 0.5 SMB: 3 A; (4)IFSM Surge non repetitive forward current Half wave, single phase, 50Hz SMB: 100 A; (5)Tstg Storage temperature range: -65 to + 150 °C; (6)Tj Maximum junction temperature: 175 °C; (7)dV/dt Critical rate of rise of reverse voltage (rated VR, Tj = 25°C): 10000 V/ms.

Features

stps3150u features: (1)negligible switching losses; (2)low forward voltage drop for higher efficiency and extended battery life; (3)low thermal resistance.

Diagrams

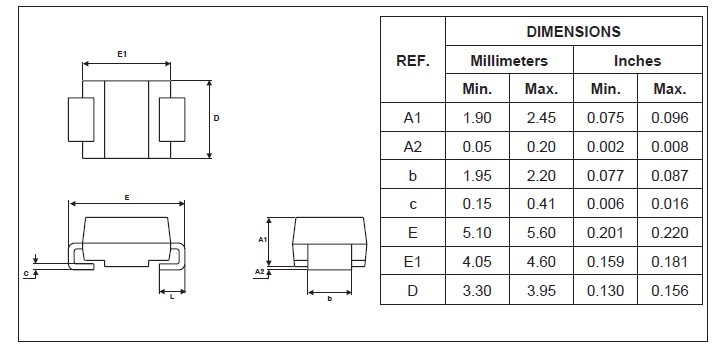

stps3150u pin connection
