Product Summary
The STPS1045B is a high voltage Schottky rectifier. The STPS1045B suited for switch mode power supplies and other power converter. Packaged in DPAK and IPAK, the STPS1045B intended for use in high frequency circuitry where low switching losses is required.
Parametrics
STPS1045B absolute maximum ratings: (1)Repetitive peak reverse voltage: 45 V; (2)RMS forward current / pin: 7 A; (3)Average forward current, Tc = 150°C d = 0.5: 10 A; (4)Surge non repetitive forward current, tp = 10 ms Sinusoidal: 75 A; (5)Repetitive peak reverse current, tp = 2 ms F = 1KHz: 1 A; (6)Storage temperature range: - 65 to + 175 °C; (7)Maximum junction temperature: 175 °C; (8)Critical rate of rise of reverse voltage: 10000 V/ms.
Features
STPS1045B features: (1)Negligible switching losses; (2)Low forward drop voltage; (3)Low capacitance; (4)High reverse avalanche surge capability.

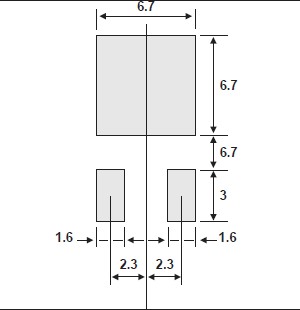

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STPS1045B |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 10 Amp 45 Volt |
Data Sheet |
|
|
||||||||||||||||||
 |
STPS1045B-1 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
STPS1045B-TR |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 10 Amp 45 Volt |
Data Sheet |
|
|
||||||||||||||||||
|
STPS1045BTR |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 10 Amp 45 Volt |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
STPS1045BTRL |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 10 Amp 45 Volt |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
STPS1045BPbF |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
STPS1045BTRR |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 10 Amp 45 Volt |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
STPS1045BY-TR |
|
DIODE SCHOTTKY 45V 10A DPAK |
Data Sheet |
|
|
||||||||||||||||||
