Product Summary
The ssm3k15fv is an Effect Transistor. The applications of the ssm3k15fv include High Speed Switching and Analog Switch.
Parametrics
ssm3k15fv absolute maximum ratings: (1)Drain-source voltage: 30 V; (2)Gate-source voltage: ±20 V; (3)Drain current: 100 mA; (4)Drain power dissipation: 150 mW; (5)Channel temperature: 150 ℃; (6)Storage temperature: -55 to 150 ℃.
Features
ssm3k15fv features: (1)Gate leakage current: ±1 μA; (2)Drain-source breakdown voltage: 30 V; (3)Drain cut-off current: 1 μA; (4)Gate threshold voltage: 0.8 to 1.5 V; (5)Forward transfer admittance: 25 mS.

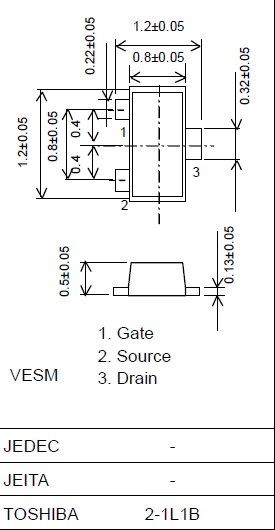

Diagrams
