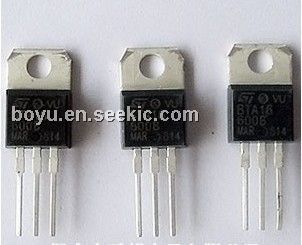

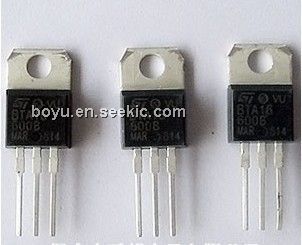

Product Summary

The BTA16-600B is a standard triac. The BTA16-600B is high performance glass passivated PNPN device. The BTA16-600B is suitables for general purpose applications where high surge current capability is required. Application such as phase control and static switching on inductive or resistive load.

Parametrics

BTA16-600B absolute maximum ratings: (1)RMS on-state current (360° conduction angle), Tc = 80 °C: 16 A; (2)Non repetitive surge peak on-state current ( Tj initial = 25°C ), tp = 8.3 ms: 170 A; tp = 10 ms: 160 A; (3)I2t value tp = 10 ms: 128 A2s; (4)Critical rate of rise of on-state current Gate supply : IG = 500mA diG/dt = 1A/ms, Repetitive F = 50 Hz: 10 A/ms; Non Repetitive: 50 A/ms; (5)Storage and operating junction temperature range,Tstg: - 40 to + 150 °C; Tj: - 40 to + 125 °C; (6)Maximum lead temperature for soldering during 10 s at 4.5 mm from case: 260 °C; (7)Repetitive peak off-state voltage Tj = 125 °C: 600 V.

Features

BTA16-600B features: (1)High surge current capability; (2)COmmutation : (dV/dt)c > 10V/ms; (3)BTA family : Insulatingvoltage= 2500V(RMS)(UL recognized : E81734).

Diagrams

BTA16-600B pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BTA16-600B
BTA16-600B
Other

Data Sheet
Negotiable
BTA16-600BRG
BTA16-600BRG
STMicroelectronics
Triacs 16 Amp 600 Volt
Data Sheet
0-1: $0.85
1-10: $0.76
10-100: $0.70
100-250: $0.62
BTA16-600BW3G
BTA16-600BW3G
ON Semiconductor
Triacs 16A 50mA 600V IGT 3 QUAD INTERNL ISLTD
Data Sheet
0-1: $0.82
1-25: $0.80
25-100: $0.64
100-250: $0.57
BTA16-600BWRG
BTA16-600BWRG
STMicroelectronics
Triacs 16 Amp 600 Volt
Data Sheet
0-1: $0.71
1-10: $0.63
10-100: $0.58
100-250: $0.51
BTA16-600BW
BTA16-600BW

TRIAC 600V 16A TO-220AB
Data Sheet
Negotiable
