Product Summary

The ssm3k15fu is an Effect Transistor. The applications of the ssm3k15fu include High Speed Switching and Analog Switch.

Parametrics

ssm3k15fu absolute maximum ratings: (1)Drain-source voltage: 30 V; (2)Gate-source voltage: ±20 V; (3)Drain current: 100 mA; (4)Drain power dissipation: 150 mA; (5)Channel temperature: 150 ℃; (6)Storage temperature: -55 to 150 ℃.

Features

ssm3k15fu features: (1)Small package; (2)Low on resistance : Ron = 4.0 Ω (max) (@VGS = 4 V); (3)Ron = 7.0 Ω (max) (@VGS = 2.5 V).

Diagrams

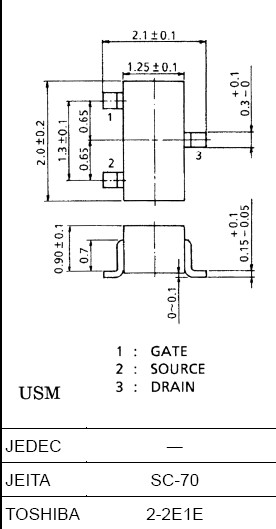

ssm3k15fu dimension
