Product Summary
The BYV26E-E3 is a fast soft-recovery controlled avalanche rectifier. Rugged glass DO-57 package, using a high temperature alloyed construction. This package of the BYV26E-E3 is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.
Parametrics
BYV26E-E3 absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 1000V; (2)Continuous reverse voltage, VR: 1000V; (3)Non-repetitive peak forward current, IFSM: 30A; (4)ERSM non-repetitive peak reverse avalanche energy: 10mJ; (5)Storage temperature, Tstg: -65 +175℃; (6)Junction temperature, Tj: -65 +175℃.
Features
BYV26E-E3 features: (1)Glass passivated; (2)High maximum operating temperature; (3)Low leakage current; (4)Excellent stability; (5)Guaranteed avalanche energy absorption capability; (6)Available in ammo-pack.

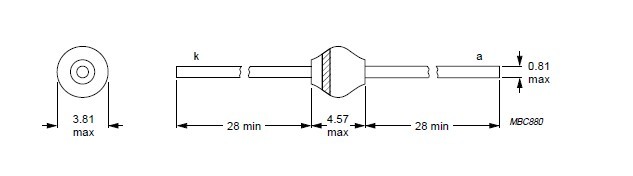

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

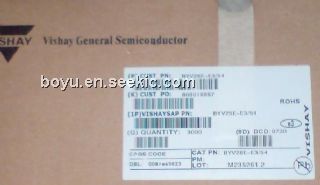

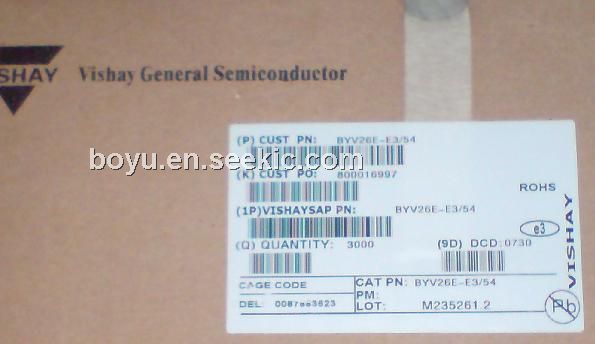

 BYV26E-E3/54 |
Vishay Semiconductors |
Rectifiers 1.0 Amp 1000 Volt |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
BYV255V |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BYV255V-200 |
STMicroelectronics |
Rectifiers 2X100 Amp 200 Volt |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BYV25D-600,118 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) Diode Ult Fast Recov Rectifier 600V 5A |
Data Sheet |
|
|
||||||||||||
 |
BYV25F-600,127 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) PWR 600 V 5 A Diode |
Data Sheet |
|
|
||||||||||||
 |
BYV25FB-600,118 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) PWR 600 V 5 A |
Data Sheet |
|
|
||||||||||||
|
BYV25G-600,127 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) 600V 5A 3-Pin(3+Tab) Diode Ultra Rectifie |
Data Sheet |
|
|
||||||||||||
