Product Summary
The pmeg2005aea is a Schottky barrier rectifier. Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD323 (SC-76) very small SMD plastic package. The applications of the pmeg2005aea include Low voltage rectification, High efficiency DC/DC conversion, Voltage clamping, Inverse polarity protection, Low power consumption applications.
Parametrics
pmeg2005aea absolute maximum ratings: (1)continuous reverse voltage: 20 V; (2)continuous forward current: 0.5 A; (3)repetitive peak forward current: 3.5 A; (4)non-repetitive peak forward current: 10 A; (5)junction temperature: 150 ℃; (6)operating ambient temperature: -65 to +150 ℃; (7)storage temperature: -65 to +150 ℃.
Features
pmeg2005aea features: (1)Very low forward voltage; (2)High surge current; (3)Very small plastic SMD package.

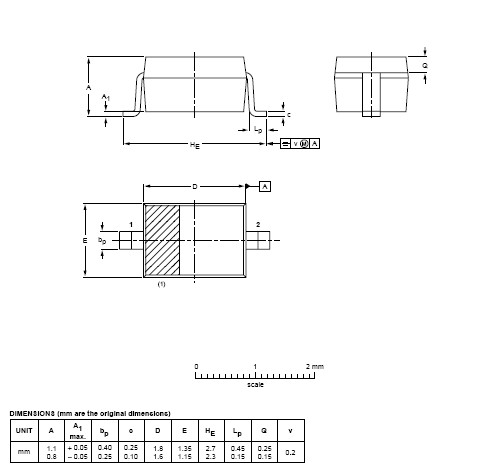

Diagrams
