Product Summary
The mac4dhmt4g is a Silicon Bidirectional Thyristor. Designed for high volume, low cost, industrial and consumer applications such as motor control; process control; temperature, light and speed control.
Parametrics
mac4dhmt4g absolute maximum ratings: (1)Peak Repetitive Off.State Voltage: 600 V; (2)On.State RMS Current: 4.0 A; (3)Peak Non-Repetitive Surge Current: 40 A; (4)Peak Gate Power: 0.5 W; (5)Average Gate Power: 0.1 W; (6)Peak Gate Current: 0.2 A; (7)Peak Gate Voltage: 5.0 V; (8)Operating Junction Temperature Range: -40 to 110 ℃; (9)Storage Temperature Range: -40 to 150 ℃.
Features
mac4dhmt4g features: (1)Small Size Surface Mount DPAK Package; (2)Passivated Die for Reliability and Uniformity; (3)Four-Quadrant Triggering; (4)Blocking Voltage to 600 V; (5)On-State Current Rating of 4.0 A RMS at 93℃; (6)Low Level Triggering and Holding Characteristics; (7)Epoxy Meets UL 94 V-0 @ 0.125 in.

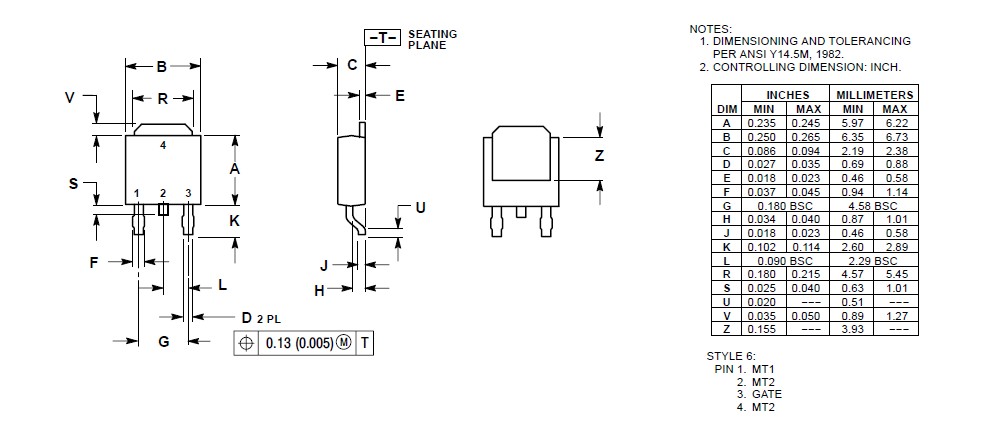

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MAC4DHMT4G |
![]() ON Semiconductor |
![]() Triacs THY 4A 600V TRIAC |
![]() Data Sheet |
![]()
|
|
||||||||||||
