Product Summary

The FQPF8N60C is an N-Channel MOSFET. The FQPF8N60C is produced using Fairchild proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. The FQPF8N60C is well suited for high efficiency switched mode power supplies, active power factor correction, electronic lamp ballasts based on half bridge topology.

Parametrics

FQPF8N60C absolute maximum ratings: (1)VDSS Drain-Source Voltage: 600 V; (2)ID Drain Current: Continuous (TC = 25℃): 7.5 A; Continuous (TC = 100℃): 4.6 A; (3)IDM Drain Current - Pulsed: 30 A; (4)VGSS Gate-Source Voltage: ± 30 V; (5)EAS Single Pulsed Avalanche Energy: 230 mJ; (6)IAR Avalanche Current: 7.5 A; (7)EAR Repetitive Avalanche Energy: 14.7 mJ; (8)dv/dt Peak Diode Recovery dv/dt: 4.5 V/ns; (9)PD Power Dissipation (TC = 25℃): 48 W; Derate above 25℃: 0.38 W/℃; (10)TJ, TSTG Operating and Storage Temperature Range: -55 to +150 ℃; (11)TL Maximum lead temperature for soldering purposes, 1/8" from case for 5 seconds: 300 ℃.

Features

FQPF8N60C features: (1)7.5A, 600V, RDS(on) = 1.2Ω @VGS = 10 V; (2)Low gate charge ( typical 28 nC); (3)Low Crss ( typical 12 pF); (4)Fast switching; (5)100% avalanche tested; (6)Improved dv/dt capability.

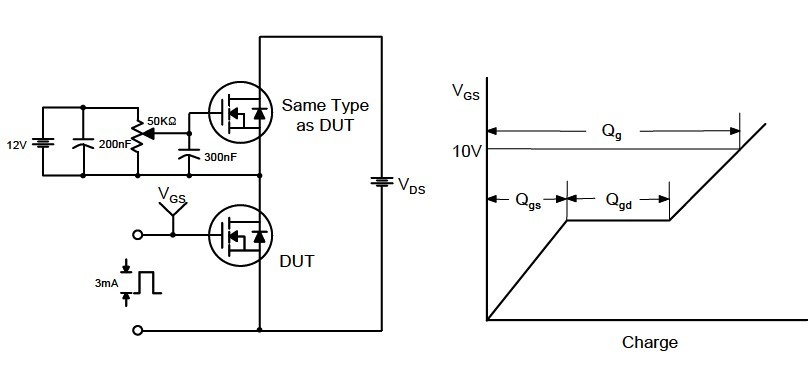

Diagrams

fqpf8n60c pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FQPF8N60C
FQPF8N60C

Fairchild Semiconductor

MOSFET 600V N-Ch Q-FET advance C-Series

Data Sheet

0-1: $0.92
1-25: $0.71
25-100: $0.56
100-250: $0.44
FQPF8N60CF
FQPF8N60CF

Other


Data Sheet

Negotiable
FQPF8N60CYDTU
FQPF8N60CYDTU

Fairchild Semiconductor

MOSFET 600V N-Ch Q-FET advance C-Series

Data Sheet

0-1: $0.94
1-25: $0.73
25-100: $0.67
100-250: $0.58
FQPF8N60CT
FQPF8N60CT

Fairchild Semiconductor

MOSFET 600V N-Ch Q-FET advance C-Series

Data Sheet

0-1: $0.98
1-25: $0.88
25-100: $0.77
100-250: $0.70
FQPF8N60CFT
FQPF8N60CFT

Fairchild Semiconductor

MOSFET N-CH/600V/8A/ QFET C-Series

Data Sheet

Negotiable
