Product Summary

The EM6K1T2R is a small switching. The applications of the EM6K1T2R include Interfacing and switching.

Parametrics

EM6K1T2R absolute maximum ratings: (1)Drain-source voltage: 30 V; (2)Gate-source voltage: ±20 V; (3)Drain current: 100 mA; (4)Reverse drain current: 400 mA; (5)Total power dissipation (Tc=25℃): 150 mW; (6)Channel temperature: 150 ℃; (7)Storage temperature: -55 to +150 ℃.

Features

EM6K1T2R features: (1)Two 2SK3019 transistors in a single EMT package; (2)The MOSFET elements are independent, eliminating interference; (3)Mounting cost and area can be cut in half; (4)Low on-resistance; (5)Low voltage drive (2.5V) makes this device ideal for portable equipment.

Diagrams

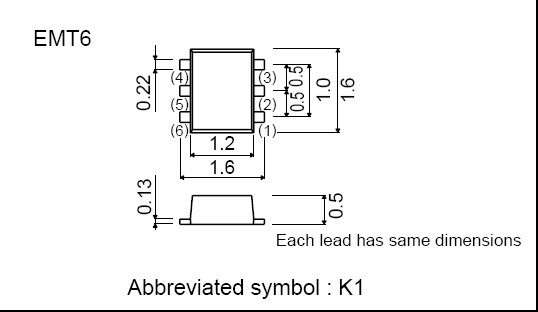

EM6K1T2R dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EM6K1T2R
EM6K1T2R
ROHM Semiconductor
MOSFET 2N-CH 30V .1A
Data Sheet
0-1: $0.33
1-25: $0.25
25-100: $0.18
100-500: $0.11
