Product Summary
The CMS11 is a Schottky Barrier Rectifier.
Parametrics
CMS11 absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 40 V; (2)Average forward current, IF (AV)(Note 1): 2.0 A, (Ta = 34°C); IF (AV): 2.0 A, (T = 119°C)A; (3)Peak one cycle surge forward current (non-repetitive), IFSM: 30 A, (50 Hz); (4)Junction temperature Tj: -40~150 °C; (5)Storage temperature Tstg: -40~150 °C.
Features
CMS11 features: (1)Forward voltage: VFM = 0.55 V (max); (2)Average forward current: IF (AV)= 2.0 A; (3)Repetitive peak reverse voltage: VRRM = 40 V; (4)Suitable for compact assembly due to small surface-mount package “M-FLATTM” (Toshiba package name).

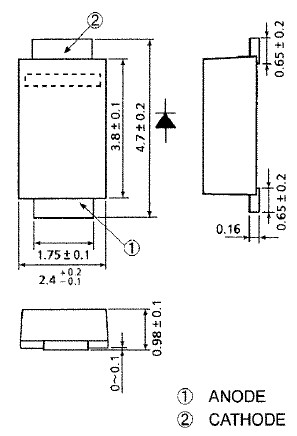

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() CMS11(TE12L) |
![]() |
![]() RECT SCHOTTKY 40V 2A MFLAT |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() CMS11(TE12L,Q) |
![]() Toshiba |
![]() Schottky (Diodes & Rectifiers) 40V 2A |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() CMS11(TE12L,Q,M) |
![]() Toshiba |
![]() Schottky (Diodes & Rectifiers) Diode Schottky 40V 2A |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() CMS11 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
