Product Summary
The bta12-800brg is a Triac. Available either in through-hole or surface-mount packages, the bta12-800brg is suitable for general purpose AC switching. It can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers. The bta12-800brg is specially recommended for use on inductive loads, thanks to their high commutation performances. Logic level versions are designed to interface directly with low power drivers such as microcontrollers. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards (File ref: E81734).
Parametrics
bta12-800brg absolute maximum ratings: (1)RMS on-state current (full sine wave): 12 A; (2)Non repetitive surge peak on-state current: 120 A; (3)Non repetitive surge peak off-state voltage: VDRM/VRRM+ 100 V; (4)Peak gate current: 4 A; (5)Average gate power dissipation: 1 W; (6)Storage junction temperature range: -40 to +150 ℃; (7)Operating junction temperature range: -40 to +125 ℃.
Features
bta12-800brg features: (1)IT(RMS) 12 A; (2)VDRM/VRRM 600 and 800 V; (3)IGT (Q1) 5 to 50 mA.

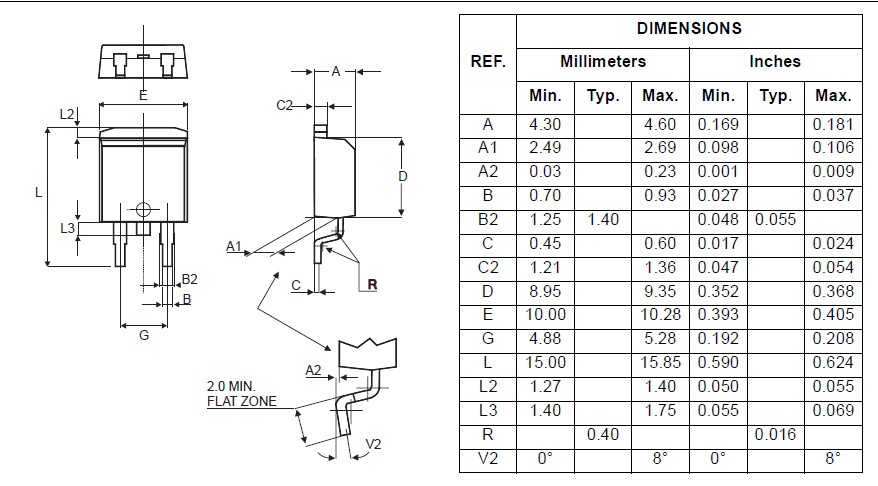

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BTA12-800BRG |
STMicroelectronics |
Triacs 12 Amp 800 Volt |
Data Sheet |
|
|
||||||||||||
