Product Summary

The IRF6646 is a kind of DirectFET Power MOSFET, which combines the latest HEXFET Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of an SO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries used in power applications, PCB assembly equipment and vapor phase, infra-red or convection soldering techniques, when application note AN-1035 is followed regarding the manufacturing methods and processes. The DirectFET package of the IRF6646 allows dual sided cooling to maximize thermal transfer in power systems, improving previous best thermal resistance by 80%.

Parametrics

IRF6646 absolute maximum ratings: (1)Drain-Source Voltage VDS: 80V; (2)Gate-Source Voltage VGS: ±20V; (3)Continuous Drain Current, VGS @ 10V, ID @ TA = 25℃ : 12A; (4)Continuous Drain Current, VGS @ 10V, ID @ TA = 70℃ : 9.6A; (5) Pulsed Drain Current. IDM: 96A; (6)IAR, Avalanche Current: 7.2 A.

Features

IRF6646 features: (1)RoHS compliant containing no lead or bromide; (2)Low Profile (<0.7 mm); (3)Dual Sided Cooling Compatible; (4)Ultra Low Package Inductance; (5)Optimized for High Frequency Switching; (6)Ideal for High Performance Isolated Converter Primary Switch Socket; (7)Optimized for Synchronous Rectification; (8)Low Conduction Losses; (9)Compatible with existing Surface Mount Techniques.

Diagrams

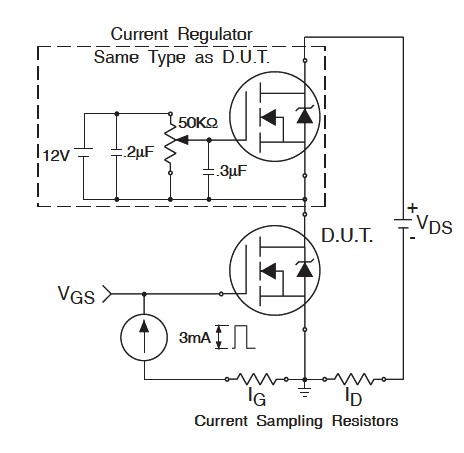

IRF6646 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRF6646
IRF6646
International Rectifier
MOSFET
Data Sheet
0-3600: $1.15
IRF6646TR1
IRF6646TR1
International Rectifier
MOSFET
Data Sheet
0-715: $1.21
715-1000: $1.21
IRF6646TR1PBF
IRF6646TR1PBF
International Rectifier
MOSFET MOSFT 80V 68A 9.5mOhm 36nC Qg
Data Sheet
0-1: $2.85
1-25: $1.95
25-100: $1.45
100-250: $1.39
IRF6646TRPBF
IRF6646TRPBF
International Rectifier
MOSFET
Data Sheet
0-3600: $1.15
3600-4800: $1.15
