Product Summary
The 2sd1858tv2q is a kind of Medium Power Transistor (32V, 1A).
Parametrics
2sd1858tv2q absolute maximum ratings: (1)Collector-to-Base Voltage, VCBO: 40 V; (2)Collector-to-Emitter Voltage, VCEO: 32 V; (3)Emitter-to-Base Voltage, VEBO: 5 V; (4)Collector Current, IC: 1 A; (5)Collector Current (Pulse), ICP: 2 A; (6)Collector Dissipation, PC: 2 W; (7)Junction Temperature, Tj: 150℃; (8)Storage Temperature, Tstg: -55 to +150℃.
Features
2sd1858tv2q features: (1)Low VCE(sat) = 0.15V(Typ.) (lC / lB = 500mA / 50mA); (2)Compliments 2SB1132 / 2SB1237.

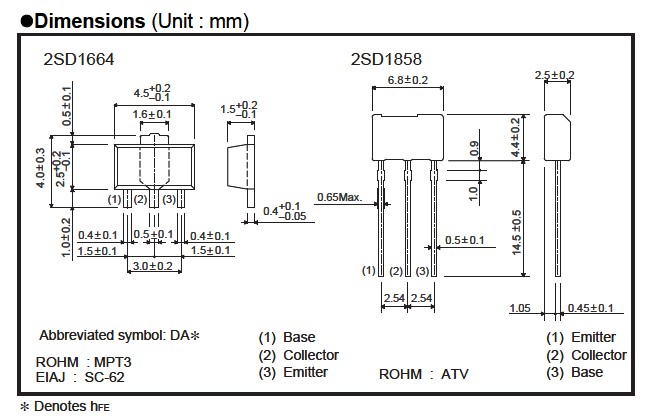

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SD1858TV2Q |
ROHM Semiconductor |
Transistors Bipolar (BJT) DVR NPN 32V 1A |
Data Sheet |
Negotiable |
|
||||
