Product Summary
The 1ss401 is a Silicon Epitaxial SCHOTTKY Barrier.
Parametrics
1ss401 absolute maximum ratings: (1)Maximum (Peak) Reverse Voltage: 25 V; (2)Reverse Voltage: 20 V; (3)Maximum (Peak) Forward Current: 700 mA; (4)Average Forward Current: 300 mA; (5)Power Dissipation: 100 mW; (6)Junction temperature: 125 ℃; (7)Storage Temperature Range: -55 to 125 ℃.
Features
1ss401 features: (1)Low Forward Voltage: VF=0.38 V; (2)Low Reverse Current: IR=50 μA (Max); (3)Small Total Capacitance: CT=46 pF.

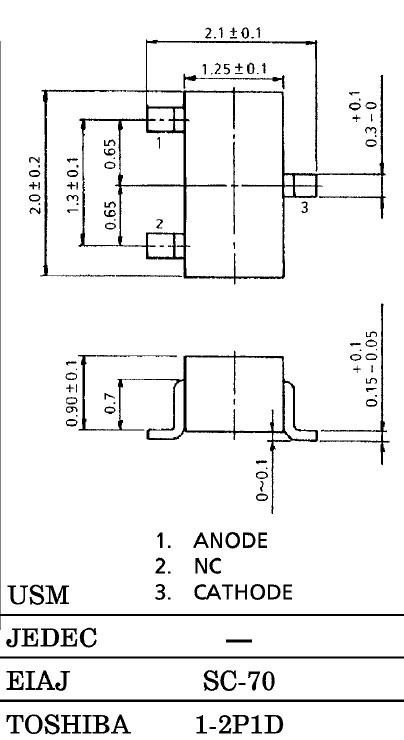

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 1SS401 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
