1SS272

1SS272, Silicon Epitaxial Planar Type Diode, 85 V, 300 mA, 150 mW, SOT

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.11~0.11 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 15000 :	0.11 / Piece

PartNumber:: 1SS272

Brand:: Toshiba Semiconductor - TOSHIBA | D/C: 11+

Availability:: Supply Ability: 15000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-30

From Other Seller

Part Number:1SS272
US $0.11 - 0.11
Quantity:

piece

Product Summary

The 1SS272 is a Silicon Epitaxial Planar Type Diode.

Parametrics

1SS272 absolute maximum ratings: (1)Maximum (peak)reverse voltage, VRM: 85 V; (2)Reverse voltage, VR: 80 V; (3)Maximum (peak)forward current, IFM: 300 mA; (4)Average forward current, IO: 100 mA; (5)Surge current (10ms), IFSM: 2 A; (6)Power dissipation, P: 150 mW; (7)Junction temperature, Tj: 125 °C; (8)Storage temperature range, Tstg: -55~125 °C.

Features

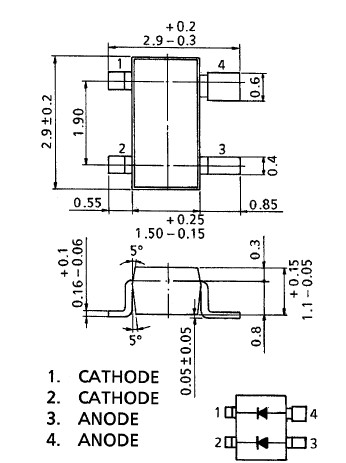

1SS272 features: (1)Small package : SC-61; (2)Low forward voltage : VF (3)= 0.92V (typ.); (3)Fast reverse recovery time : trr = 1.6ns (typ.); (4)Small total capacitance : CT = 0.9pF (typ.).
