Product Summary

The 15MQ040NTRPBF is a SCHOTTKY rectifier. The 15MQ040NTRPBF Schottky rectifier is designed to be used for low-power applications where a reverse voltage of 40 volts is ancountered and surface mountable is required. The applications of the 15MQ040NTRPBF include Switching power supplies, Meter protection, Reverse protection for power input to PC board circuits, Battery isolation and charging, Low threshold voltage diode, Free-wheeling or by-pass diode, Low voltage clamp.

Parametrics

15MQ040NTRPBF absolute maximum ratings: (1)Max. Average Forward Current: 2.1 A; (2)Max. Peak One Cycle Non-Repetitive Surge Current: 330 A; (3)Non-Repetitive Avalanche Energy: 6.0 mJ; (4)Repetitive Avalanche Current: 1.0 A.

Features

15MQ040NTRPBF features: (1)Surface mountable; (2)Extremely low forward voltage; (3)Improved reverse blocking voltage capability relative to other similar size Schottky; (4)Compact size.

Diagrams

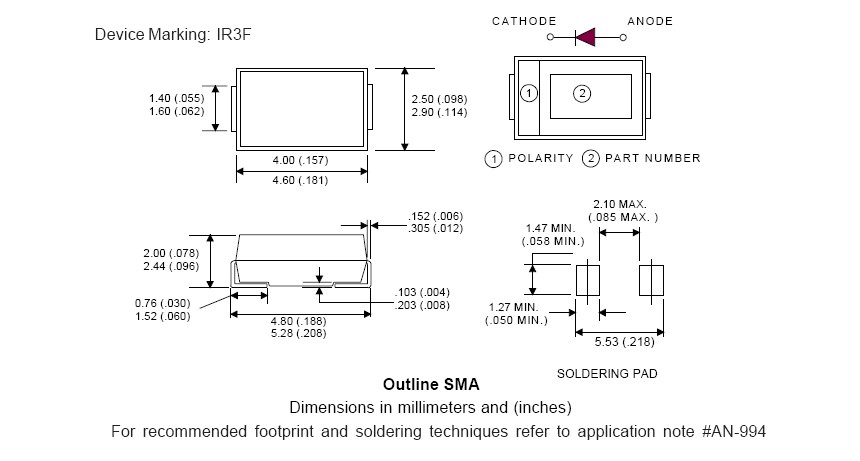

15MQ040NTRPBF dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
15MQ040NTRPBF
15MQ040NTRPBF

DIODE SCHOTTKY 40V 3A SMA
Data Sheet
0-1: $0.44
1-10: $0.38
10-25: $0.34
25-100: $0.30
100-250: $0.26
250-500: $0.22
500-1000: $0.18
1000-2500: $0.16
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
15MQ040N
15MQ040N
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 2.1 Amp 40 Volt
Data Sheet
Negotiable
15MQ040NPBF
15MQ040NPBF

DIODE SCHOTTKY 40V 3A SMA
Data Sheet
0-1: $0.40
1-10: $0.35
10-25: $0.31
25-100: $0.27
100-250: $0.24
250-500: $0.20
500-1000: $0.16
1000-2500: $0.15
2500-5000: $0.14
15MQ040NTRPBF
15MQ040NTRPBF

DIODE SCHOTTKY 40V 3A SMA
Data Sheet
0-1: $0.44
1-10: $0.38
10-25: $0.34
25-100: $0.30
100-250: $0.26
250-500: $0.22
500-1000: $0.18
1000-2500: $0.16
15MQ040NTR
15MQ040NTR
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 2.1 Amp 40 Volt
Data Sheet
Negotiable
