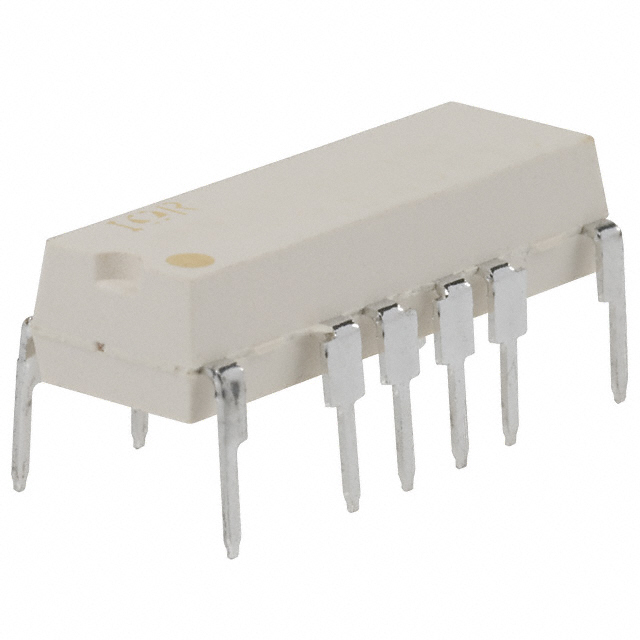

Product Summary
The PVR2300N is an AC/DC relay. It is a dual-pole, normally open, solid-state replacement for electromechanical relay used for general purpose switching of analog signals. The PVR2300N utilizes international rectifier HEXFET power MOSFET as the output switches, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode (LED), which is optically isolated from the photovoltaic generator. Applications are (1)Process control; (2)Data acquisition; (3)Test equipment; (4)Multiplexing and scanning.
Parametrics
PVR2300N absolute maximum ratings: (1)Minimum control current a connection, For 170 continuous load current: 2.0 mA@25°C; For 165 continuous load current: 5.0 mA@40°C; For 130 continuous load current: 5.0 mA@85°C; (2)Minimum turn-off current: 10 μA(DC); (3)Minimum turn-off voltage: 0.6 V(DC); (4)Control current range: 2.0 to 25 mA(DC); (5)Maximum reverse voltage: 6.0 V(DC); (6)Dielectric strength: Input-Output: 1500 VRMS; (7)Maximum capacitance: Input-Output: 1.0 pF; (8)Maximum lead soldering temperature (1.6mm below seating plane for 10 sec.): 260 °C; (9)Ambient temperature range: Operating: -40 to +85 °C; Storage -40 to +100 °C.
Features
PVR2300N features: (1)Bounce-Free operation; (2)1010 Off-State resistance; (3)1,000 V/μsec dv/dt; (4)0.2 μV thermal offset; (5)5 mA input sensitivity; (6)1,500 VRMS I/O isolation; (7)Solid-State Reliability.

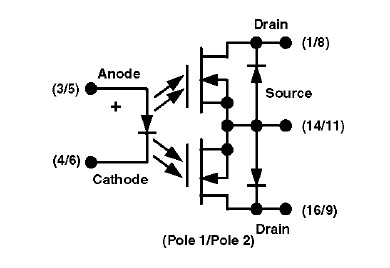

Diagrams
