Product Summary
The PVA2352NS is a single-pole, normally open, solid-state replacement for electromechanical relay. The PVA2352NS used for general purpose switching of analog signals. The PVA2352NS utilizes International Rectifier HEXFET power MOSFETs as the output switches, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode (LED), which is optically isolated from the photovoltaic generator. Applications are (1)Process control; (2)Data acquisition; (3)Test equipment; (4)Multiplexing and scanning.
Parametrics
PVA2352NS absolute maximum ratings: (1)Operating voltage range: 0 to ± 200 V; (2)Maxiumum load current 40°C I LED 5mA: 150 mA(DC); (3)Max. On-state resistance 25°C (Pulsed)(fig. 4)50 mA Load, 5mA Control: 24 Ω; (4)Min. Off-state resistance @ 25°C (see figure 5): 160VDC Ω; (5)Response time @25°C (see figures 7 and 8), Max. T(on)@ 12mA Control, 50 mA Load, 100 VDC: 100 μs; Max. T(off)@ 12mA control, 50 mA Load, 100 VDC: 110 μs; (6)Max. Thermal offset voltage @ 5.0mA control: 0.2 μvolts; (7)Min. Off-State dv/dt: 1000 V/μs; (8)Typical output capacitance (see figure 10): 6 pF @ 50V.
Features
PVA2352NS features: (1)Bounce-free operation; (2)1010 off-state resistance; (3)1,000 V/μsec dv/dt; (4)0.2 μV thermal offset; (5)5 mA input sensitivity; (6)4,000 VRMS I/O isolation; (7)Solid-state reliability; (8)UL recognized; (9)ESD tolerance: 4000V human body model; 500V machine model.

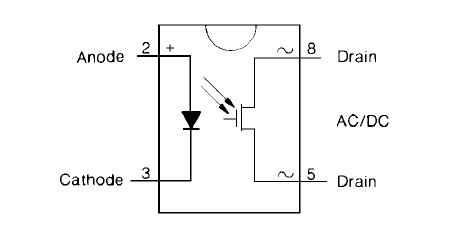

Diagrams
