PS2561L-1-V-F3-A

ps2561l-1-v-f3-a, optically coupled isolator, 80V, 50 mA, 3 μs, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.08~0.08 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.08 / Piece

PartNumber:: PS2561L-1-V-F3-A

Brand:: NEC - NEC | D/C: 10+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-22

From Other Seller

Part Number:PS2561L-1-V-F3-A
US $0.08 - 0.08
Quantity:

piece

Product Summary

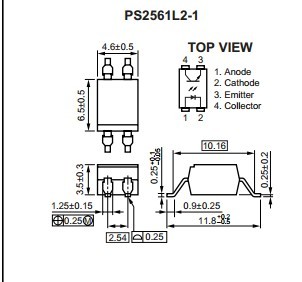

The ps2561l-1-v-f3-a is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. The ps2561l-1-v-f3-a is in a plastic DIP and it is lead bending type (Gull-wing) for surface mount. The applications of the ps2561l-1-v-f3-a are: Power supply; Telephone/FAX; FA/OA equipment; Programmable logic controller.

Parametrics

ps2561l-1-v-f3-a absolute maximum ratings: (1)Reverse Voltage VR: 6 V; (2)Forward Current (DC) IF: 80 mA; (3)Power Dissipation Deratin ΔPD/℃: 1.5 mW/℃; (4)Power Dissipation PD: 150 mW/ch; (5)Peak Forward Current IFP: 1 A; (6)Collector to Emitter Voltage VCEO: 80V; (7)Emitter to Collector Voltage VECO: 7 V; (8)Collector Current IC: 50 mA/ch; (9)Isolation Voltage BV: 5 000 Vr.m.s.; (10)Operating Ambient Temperature TA: -55 to +100 ℃; (11)Storage Temperature Tstg: -55 to +150 ℃.

Features

ps2561l-1-v-f3-a features: (1)High isolation voltage BV = 5 000 Vr.m.s.: standard products; BV = 3 750 Vr.m.s.: VDE0884 approved products (Option); (2)High collector to emitter voltage (VCEO = 80 V); (3)High current transfer ratio (CTR = 200 % TYP.); (4)High-speed switching (tr = 3 μs TYP., tf = 5 μs TYP.); (5)UL approved (File No. E72422 (S) ); (6)CSA approved (No. CA 101391); (7)BSI approved (BS415, BS7002) No. 7112; (8)SEMKO approved (SS4410165) No. 9317144; (9)NEMKO approved (NEK-HD 195S6) No. A21409; (10)DEMKO approved (Section 101, 137) No. 300535; (11)FIMKO approved (E69-89) No. 167265-08; (12)VDE0884 approved (Option).
