Product Summary

The PC814A is an AC Input Photocoupler. The applications of the PC814A include Programmable controllers, Telephone sets, telephone exchangers, System appliances, Signal transmission between circuits of different potentials and impedances.

Parametrics

PC814A absolute maximum ratings: (1)Forward current, IF: ± 50 mA; (2)Peak forward current, IFM: ± 1 A; (3)Power dissipation, P: 70 mW; (4)Collector-emitter voltage, VCEO: 35 V; (5)Emitter-collector voltage, VECO: 6 V; (6)Collector current, IC: 50 mA; (7)Collector power dissipation, PC: 150 mW; (8)Total power dissipation, Ptot: 200 mW; (9)Isolation voltage, Viso: 5 000 Vrms; (10)Operating temperature Topr -30 to + 100℃; (11)Storage temperature, Tstg: -55 to + 125℃; (12)Soldering temperature, Tsol: 260℃.

Features

PC814A features: (1)AC inpu; (2)High isolation voltage between input and output (V : 5 000Vrms ); (3)Compact dual-in-line package (1-channel type ); (4)Current transfer ratio, CTR : MIN. 20% at IF = ± 1mA, VCE= 5V ; (5)Recognized by UL, file No. E64380.

Diagrams

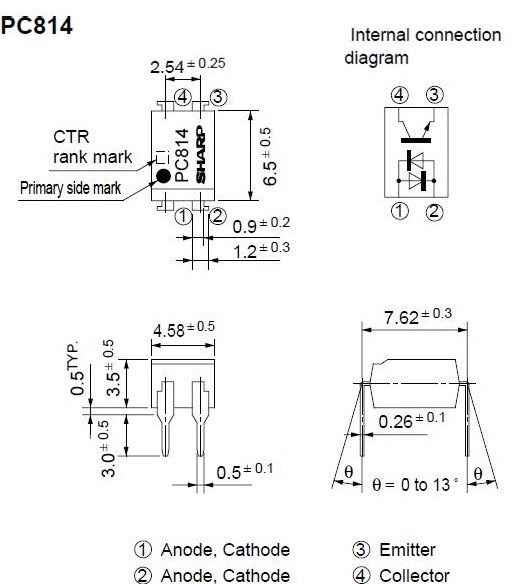

PC814A block diagram
