Product Summary

The TLP596G is a photo relay. The TLP596G consists of an aluminum gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in a six lead plastic DIP package. The TLP596G is a bi-directional switch which can replace mechanical relays in many applications.

Parametrics

TLP596G absolute maximum ratings: (1)Forward Current IF: 50 mA; (2)Forward Current Derating (Ta＞25℃): -0.5 mA/℃; (3)Peak Forward Current (100ms pulse, 100pps) IFP: 1 A; (4)Reverse Voltage VR: 5 V; (5)Junction Temperature Tj: 125℃; (6)Off-State Output Terminal Voltage VOFF: 400V.

Features

TLP596G features: (1)Peak Off-State Voltage : 400V (Min.); (2)On-State Current : 120mA (Max.) (A Connection); (3)On-State Resistance : 30W (Max.) (A Connection); (4)Insulation Thickness : 0.4mm (Max.); (5)Isolation Voltage : 2500Vrms (Min.); (6)UL Recognized : UL1577, File No. E67349; (7)Trigger LED Current (Ta = 25℃).

Diagrams

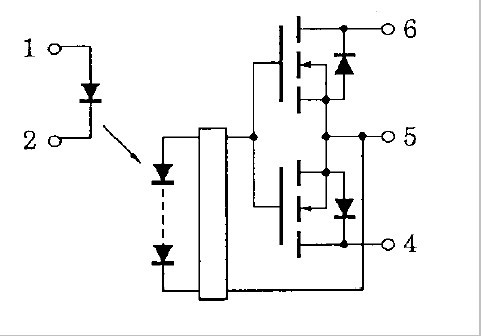

TLP596G block diagram
