Product Summary
The pc357n7tj00f(d) is an electronic component.
Parametrics
pc357n7tj00f(d) absolute maximum ratings: (1)Forward current: 50 mA; (2)Peak forward current: 1 A; (3)Reverse voltage: 6 V; (4)Power dissipation: 70 mW; (5)Collector-emitter voltage: 35 V; (6)Emitter-collector voltage: 6 V; (7)Collector current: 50 mA; (8)Collector power dissipation: 150 mW; (9)Operating temperature: -30 to +100 ℃; (10)Storage temperature: -40 to +125 ℃.
Features
pc357n7tj00f(d) features: (1)Forward voltage: 1.2 to 1.4 V; (2)Reverse current: 10 μA; (3)Terminal capacitance: 30 to 250 pF; (4)Dark current: 100 nA; (5)Collector-emitter breakdown voltage: 35 V; (6)Emitter-collector: 6V.

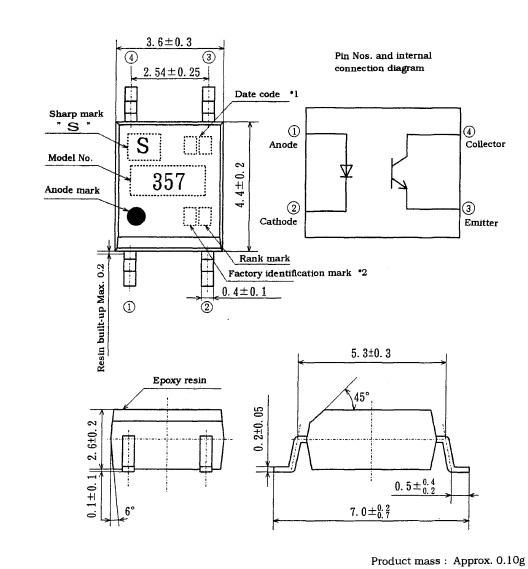

Diagrams
