Product Summary
The sn74ahct541dwr is an Octal buffer/driver. The sn74ahct541 octal buffers/drivers are ideal for driving bus lines or buffer memory address registers. The sn74ahct541 feature inputs and outputs on opposite sides of the package to facilitate printed circuit board layout. The 3-state control gate is a 2-input AND gate with active-low inputs so that if either output-enable (OE1 or OE2) input is high, all corresponding outputs are in the high-impedance state. The outputs provide no inverted data when they are not in the high-impedance state.
Parametrics
sn74ahct541dwr absolute maximum ratings: (1)Supply voltage range: –0.5 V to 7 V; (2)Input voltage range: –0.5 V to 7 V; (3)Output voltage range: –0.5 V to VCC + 0.5 V; (4)Input clamp current: –20 mA; (5)Output clamp current: ±20 mA; (6)Continuous output current: ±25 mA; (7)Continuous current through VCC or GND: ±75 mA; (8)Package thermal impedance: 70℃/W.
Features
sn74ahct541dwr features: (1)Inputs Are TTL-Voltage Compatible; (2)Latch-Up Performance Exceeds 250 mA Per JESD 17.

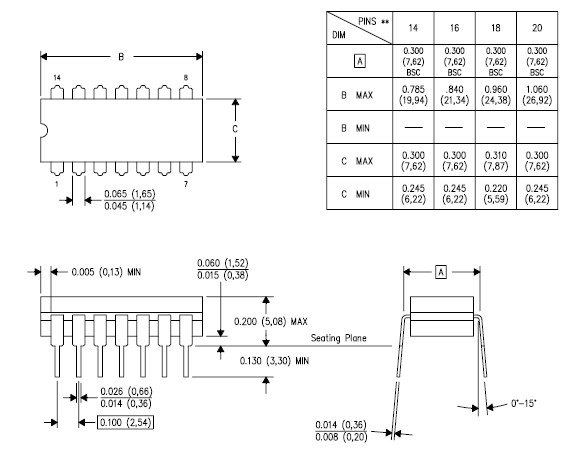

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74AHCT541DWR |
Texas Instruments |
Buffers & Line Drivers Tri-State Octal |
Data Sheet |
|
|
||||||||||||
|
SN74AHCT541DWRE4 |
Texas Instruments |
Buffers & Line Drivers Octal Buffer/Driver With 3-State Outputs |
Data Sheet |
|
|
||||||||||||
|
SN74AHCT541DWRG4 |
Texas Instruments |
Buffers & Line Drivers Octal Buffer Driver |
Data Sheet |
|
|
||||||||||||
