Product Summary

The upc2709t-t1-e3 is a 2.5 ghz silicon mmic wide-band amplifier. The upc2709t-t1-e3 is Silicon Monolithic integrated circuits manufactured using the NESAT III process. The upc2709t-t1-e3 is suitable as buffer amplifiers for wide-band applications. The upc2709t-t1-e3 is designed for low cost gain stages in cellular radios, GPS receivers, DBS tuners, PCN, and test/ measurement equipment.

Parametrics

upc2709t-t1-e3 absolute maximum ratings: (1)VCC Supply Voltage: 6 V; (2)ICC Total Circuit Current UPC2709T: 60 mA; (3)PIN Input Power: +10 dBm; (4)PT Power Dissipation 2: 280 mW; (5)TOP Operating Temperature: -40 to +85°C; (6)TSTG Storage Temperature: -55 to +150°C.

Features

upc2709t-t1-e3 features: (1)wide frequency response: 2.5 ghz; (2)high gain: 23 db (upc2709t); (3)saturated output power: +11.5 dbm (upc2709t); (4)internal current regulation minimizes gain change over temperature; (5)5 v single supply voltage; (6)super small package; (7)tape and reel packaging option available.

Diagrams

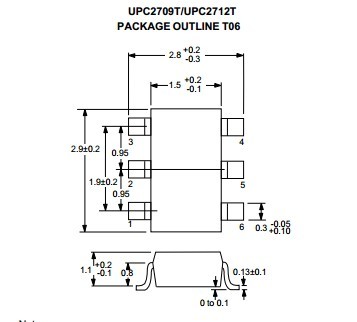

upc2709t-t1-e3 pin connection
