Product Summary

The tps71530dckr is a Low-Dropout Linear Regulator. The tps71530dckr low-dropout (LDO) voltage regulators offer the benefits of high input voltage, low-dropout voltage, low-power operation, and miniaturized packaging. The devices, which operate over an input range of 2.5 V to 24 V, are stable with any capacitor (3 0.47 μF). The low dropout voltage and low quiescent current allow operations at extremely low power levels. Therefore, the devices are ideal for powering battery management ICs. Specifically, since the devices are enabled as soon as the applied voltage reaches the minimum input voltage, the output is quickly available to power continuously operating battery charging ICs. The applications of the tps71530dckr include Ultra Low Power Microcontrollers, Cellular/Cordless Handsets and Portable/Battery-Powered Equipment.

Parametrics

tps71530dckr absolute maximum ratings: (1)VIN range: -0.3 V to 24 V; (2)Peak output current: Internally limited; (3)ESD rating, HBM: 2 kV; (4)ESD rating, CDM: 500 V; (5)Junction temperature range: -40℃ to 150℃; (6)Storage temperature range: -65℃ to 150℃.

Features

tps71530dckr features: (1)24-V Maximum Input Voltage; (2)Low 3.2-μA Quiescent Current at 50 mA; (3)Stable With Any Capacitor (3 0.47 μF); (4)50-mA Low-Dropout Regulator; (5)Minimum/Maximum Specified Current Limit; (6)5-Pin SC70/SOT-323 (DCK) Package.

Diagrams

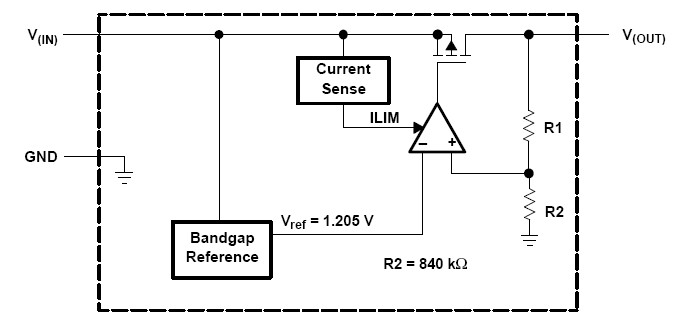

tps71530dckr block diagram
