Product Summary
The tps3803-01dckr is a Voltage detector. The tps3803-01dckr provides circuit initialization and timing supervision, primarily for DSPs and processor-based systems. The tps3803-01dckr has a fixed-sense threshold voltage VIT set by an internal voltage divider, whereas the tps3803-01dckr has an adjustable SENSE input that can be configured by two external resistors. In addition to the fixed sense threshold monitored at VDD, the tps3803-01dckr provides a second adjustable SENSE input. RESET is asserted in case any of the two voltages drops below VIT. The applications of the tps3803-01dckr include Applications Using DSPs, Microcontrollers, or Microprocessors, Wireless Communication Systems, Portable/Battery-Powered Equipment, Programmable Controls, Intelligent Instruments, Industrial Equipment, Notebook/Desktop Computers and Automotive Systems.
Parametrics
tps3803-01dckr absolute maximum ratings: (1)Supply voltage: +7 V; (2)All other pins: -0.3 V to +7 V; (3)Maximum low-output current: +5 mA; (4)Maximum high-output current: -5 mA; (5)Input clamp current, IIK (VI < 0 or VI > VDD: ±10 mA; (6)Output clamp current, IOK (VO < 0 or VO > VDD): ±10 mA; (7)Operating free-air temperature range: -40℃ to +85℃; (8)Storage temperature range: -65℃ to +150℃; (9)Soldering temperature: +260℃.
Features
tps3803-01dckr features: (1)Single Voltage Detector (TPS3803): Adjustable/1.5 V; (2)Dual Voltage Detector (TPS3805): Adjustable/3.3 V; (3)High ±1.5% Threshold Voltage Accuracy; (4)Supply Current: 3 μA Typical at VDD = 3.3 V; (5)Push/Pull Reset Output (TPS3805) Open-Drain Reset Output (TPS3803); (6)Temperature Range: -40℃ to +85℃; (7)5-Pin SC.70 Package.

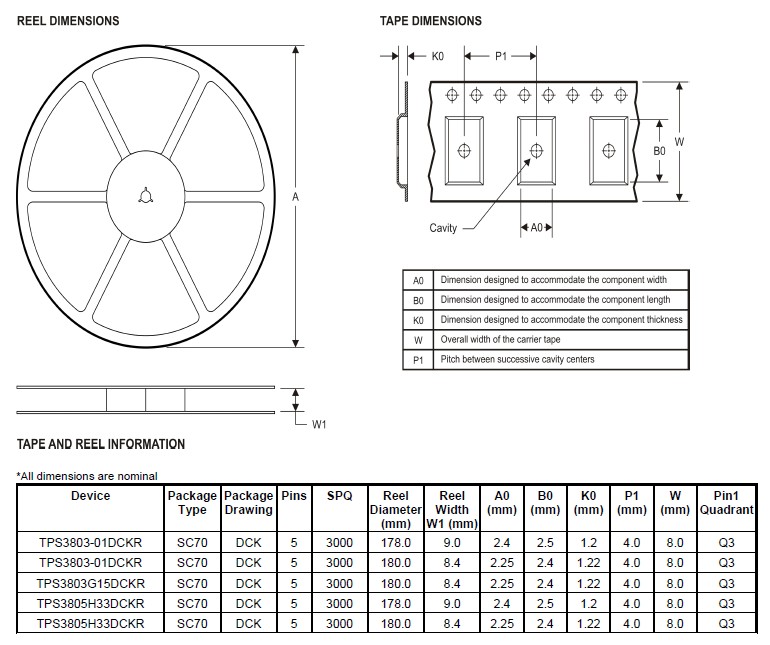

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS3803-01DCKR |
Texas Instruments |
Voltage Detectors / Monitors Adj 1.5V V Detector |
Data Sheet |
|
|
||||||||||||
|
TPS3803-01DCKRG4 |
Texas Instruments |
Voltage Detectors / Monitors Single Voltage Detector |
Data Sheet |
|
|
||||||||||||
