TPA6205A1DRBR

tpa6205a1drbr, amplifier, 6 V, 1.7mA, 90 dB, SON

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.34~0.34 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.34 / Piece

PartNumber:: TPA6205A1DRBR

Brand:: Texas Instruments - TI | Pack: | D/C: 10+

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-24

From Other Seller

Part Number:TPA6205A1DRBR
US $0.34 - 0.34
Quantity:

piece

Product Summary

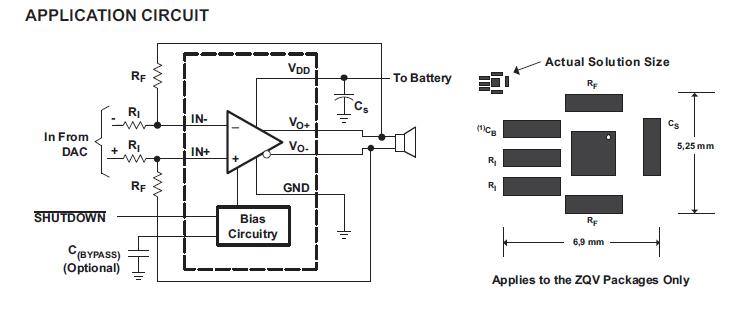

The tpa6205a1drbr is a 1.25-W mono fully differential amplifier designed to drive a speaker with at least 8-W impedance while consuming less than 37 mm2 (ZQV package option) total printed-circuit board (PCB) area in most applications. This device operates from 2.5 V to 5.5 V, drawing only 1.7 mA of quiescent supply current. The tpa6205a1drbr is available in the space-saving 2 mm x 2 mm MicroStar Junior. BGA package, and the space saving 3 mm x 3 mm QFN (DRB) package. The applications of the tpa6205a1drbr include Designed for Wireless Handsets, PDAs, and other mobile devices, Compatible with Low Power (1.8V Logic) I/O Threshold control signals.

Parametrics

tpa6205a1drbr absolute maximum ratings: (1)VDD, Supply voltage: -0.3 V to 6 V; (2)VI, Input voltage INx and SHUTDOWN pins: -0.3 V to VDD + 0.3 V; (3)Continuous total power dissipation: See Dissipation Rating Table; (4)TA, Operating free-air temperature: -40 to 85℃; (5)TJ, Junction temperature: -40 to 125℃; (6)Tstg, Storage temperature: -65 to 85℃; (7)Lead temperature 1,6 mm (1/16 Inch) from case for 10 seconds ZQV, DRB, DGN: 260℃.

Features

tpa6205a1drbr features: (1)1.25 W Into 8W From a 5-V Supply at THD = 1% (Typical); (2)Shutdown Pin has 1.8V Compatible Thresholds; (3)Low Supply Current: 1.7mA Typical; (4)Shutdown Current < 10mA; (5)Only Five External Components, Improved PSRR (90 dB) and Wide Supply Voltage (2.5V to 5.5V) for Direct Battery Operation; Fully Differential Design Reduces RF Rectification; Improved CMRR Eliminates Two Input Coupling Capacitors; C(BYPASS) Is Optional Due to Fully Differential Design and High PSRR; (6)Available in 3 mm x 3 mm QFN Package; (7)Available in an 8-Pin PowerPAD MSOP; (8)Avaliable in a 2 mm x 2 mm MicroStar Junior BGA Package (ZQV).
