Product Summary
The tlc27l2idr is a Precision dual operational amplifier. The tlc27l2idr combines a wide range of input offset voltage grades with low offset voltage drift, high input impedance, extremely low power, and high gain.
Parametrics
tlc27l2idr absolute maximum ratings: (1)Supply voltage: 18 V; (2)Differential input voltage: ±VDD; (3)Input voltage range: -0.3 V to VDD; (4)Input current: ±5 mA; (5)Output current: ±30 mA; (6)Total current into VDD: 45 mA; (7)Total current out of GND: 45 mA; (8)Storage temperature range: -65℃ to 150℃; (9)Case temperature for 60 seconds: 260℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
tlc27l2idr features: (1)Single-Supply Operation; (2)Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix, I-Suffix Types); (3)Ultra-Low Power Typically 95 μW at 25℃, VDD = 5 V; (4)Output Voltage Range Includes Negative Rail; (5)High Input Impedance 1012 Ω Typ; (6)ESD-Protection Circuitry; (7)Small-Outline Package Option Also Available in Tape and Reel; (8)Designed-In Latch-Up immunity.

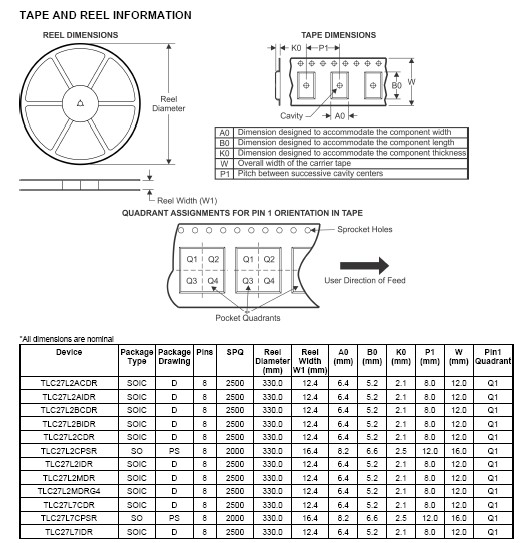

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLC27L2IDR |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Prec Micropwr |
Data Sheet |
|
|
||||||||||||
|
TLC27L2IDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Precision Single Supply uPower |
Data Sheet |
|
|
||||||||||||
