TL064CD

TL064CD, Texas, amplifier, 18 V, 200 μA, 3.5 V/μs

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.11~0.11 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.11 / Piece

PartNumber:: TL064CD

Brand:: Texas Instruments - TI | Pack: | D/C: 10+

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-30

From Other Seller

Part Number:TL064CD
US $0.11 - 0.11
Quantity:

piece

Product Summary

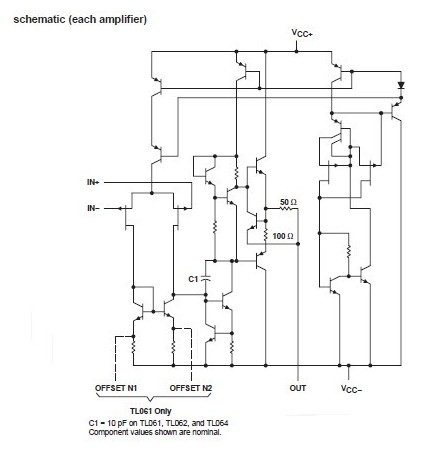

The TL064CD is a low-power JFET-put operational amplifier. It is designed as low-power versions of the TL08_ series amplifiers. It features high input impedance, wide bandwidth, high slew rate, and low input offset and input bias currents. The TL064CD features the same terminal assignments as the TL07_ and TL08_ series. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in an integrated circuit.

Parametrics

TL064CD absolute maximum ratings: (1)Supply voltage, VCC+: 18 V; (2)Supply voltage, VCC-: -18 V; (3)Differential input voltage, VID: ±30 V; (4)Input voltage, VI: ±15 V; (5)Operating virtual junction temperature, TJ: 150 ℃; (6)Lead temperature 1,6 mm (1/6 inch) from case for 10 seconds D, N, NS, P, PS,or PW package: 260 ℃; (7)Storage temperature range, Tstg: -65 to 150 ℃.

Features

TL064CD features: (1)Very Low Power Consumption; (2)Typical Supply Current: 200 μA(Per Amplifier); (3)Wide Common-Mode and Differential Voltage Ranges; (4)Low Input Bias and Offset Currents; (5)Common-Mode Input Voltage Range Includes VCC+; (6)Output Short-Circuit Protection; (7)High Input Impedance: JFET-Input Stage; (8)Internal Frequency Compensation; (9)Latch-Up-Free Operation; (10)High Slew Rate: 3.5 V/μs Typ.
