TC7W14FU

schmitt inverter, -0.5 to 7V, ±25mA, 200mW, SOP8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.06~0.06 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 6000 :	0.06 / Piece

PartNumber:: TC7W14FU

Brand:: Toshiba Semiconductor - Toshiba | Pack: BGA | D/C: 04+

Availability:: Supply Ability: 6000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-15

From Other Seller

Part Number:TC7W14FU
US $0.06 - 0.06
Quantity:

piece

Product Summary

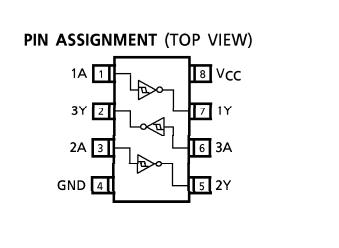

The tc7w14fu is a high speed C2MOS schmitt inverter fabricated with silicon gate C2MOS technology. The tc7w14fu achieves the high speed operation similar to equivalent LSTTL while maintaing the C2MOS low power dissipation. Pin configuration and function of the tc7w14fu are same as the TC7WU04 but the inputs have 25% Vcc hysteresis and with its schmitt trigger function.

Parametrics

tc7w14fu absolute maximum ratings: (1) supply voltage range Vcc: -0.5 to 7V; (2) DC input voltage VIN: -0.5 to Vcc +0.5V; (3) DC output voltage VOUT: -0.5 to Vcc +0.5V; (4) Input diode current IIK: ±20mA; (5) Output diode current IOK: ±20mA; (6) DC output current IOUT: ±25mA; (7) DC VCC/Ground Current ICC: ±25mA; (8) Power dissipation PD: 200mW (US8) , 300mW (FM8, SM8) ; (9) Storage temperature Tstg: -65 to +150°C; (10) Lead temperature (10s) TL: 260°C.

Features

tc7w14fu features: (1) high speed: tpd=11ns (Typ.) at Vcc=5V; (2) Low power dissipation: Icc=1μA (Max.) at Ta=25°C; (3) high noise immunity: VH=1.1V at Vcc=5V; (4) output drive capability: 10 LSTTL loads; (5) balanced propagation delays: tpLH=tpHL; (6) wide operating voltage range: Vcc (opr) =2-6V.
