Product Summary
The tc7sz08afe is a 2 input AND gate.
Parametrics
tc7sz08afe absolute maximum ratings: (1) high output drive: ±24mA; (2) super high speed operation: tPD 2.7ns (Typ.) @Vcc=5V, 50pF; (3) Operation voltage range: Vcc (opr) =1.8 - 5.5V; (4) Supply voltage data retention: Vcc=1.5 to 5.5V; (5) Latch-up performance: ±500mA; (6) ESD performance: Human body model＞±2000V, Machine modell＞±200V; (7) power down protection is provided on all inputs; (8) input rise and fall time (tr., tf) (Recommended operation condition) @Vcc=1.8V, 2.5V±0.2V: 0 -20ns/V, @Vcc=3.3±0.3V: 0-10ns/V, @Vcc=5.5V±0.5V : 0-5ns/V.
Features
tc7sz08afe features: (1) supply voltage range Vcc: -0.5 to 6V; (2) DC input voltage VIN: -0.5 to 6V; (3) DC output voltage VOUT: -0.5 to Vcc +0.5V; (4) Input diode current IIK: ±20mA; (5) output diode current IOK: ±20mA; (6) DC output current IOUT: ±50mA; (7) DC VCC/ Ground current ICC: ±50mA; (8) Power dissipation PD: 150mW; (9) Storage temperature Tstg: -65 to 150°C; (10) Lead temperature (10s) TL: 260°C.

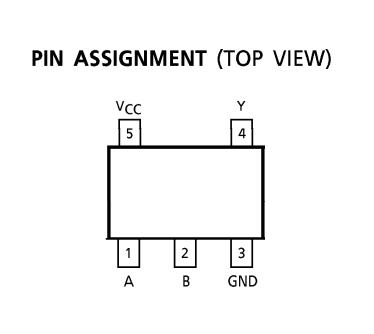

Diagrams
