TC74VHC221AFT

TC74VHC221AFT, monostable multivibrator, 7.0 V, 20 mA, 180 mW, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2000 :	0.10 / Piece

PartNumber:: TC74VHC221AFT

Brand:: Toshiba Semiconductor - Toshiba | Pack: | D/C: 03+

Availability:: Supply Ability: 2000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-25

From Other Seller

Part Number:TC74VHC221AFT
US $0.10 - 0.10
Quantity:

piece

Product Summary

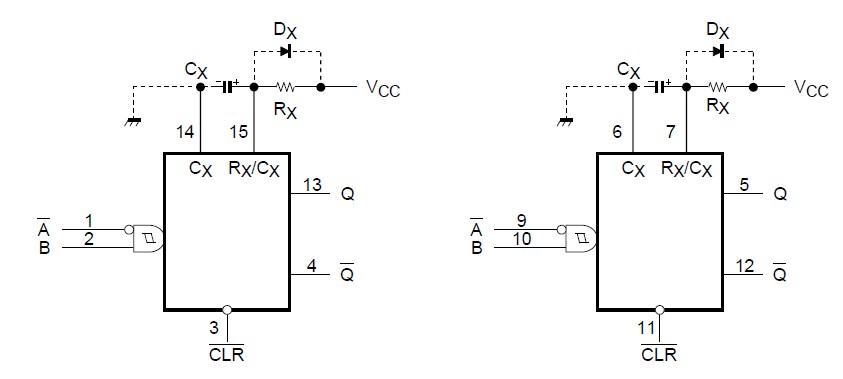

The TC74VHC221AFT is a high speed CMOS monostable multivibrator fabricated with silicon gate C2MOS technology. The TC74VHC221AFT is two trigger inputs, A input (negative edge), and B input (positive edge). The input is valid for a slow rise/fall time signal (tr = tf = 1 s) as they are schmitt trigger input. The TC74VHC221AFT may also be triggered by using CLR input (positive edge). After triggering, the output stays in a monostable state for a time period determined by the external resistor and capacitor (RX, CX). A low level at the CLR input breaks this state.

Parametrics

TC74VHC221AFT absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 to 7.0 V; (2)DC input voltage, VIN: -0.5 to 7.0 V; (3)DC output voltage, VOUT: -0.5 to VCC + 0.5 V; (4)Input diode current, IIK: -20 mA; (5)Output diode current, IOK: ±20 mA; (6)DC output current, IOUT: ±25 mA; (7)DC VCC/ground current, ICC: ±50 mA; (8)Power dissipation, PD: 180 mW; (9)Storage temperature, Tstg: -65 to 150 °C.

Features

TC74VHC221AFT features: (1)High speed: tpd = 8.1 ns (typ.)at VCC = 5 V; (2)Low power dissipation: Standby state: 4 μA (max)at Ta = 25°C; Active state: 600 μA (max)at Ta = 25°C; (3)High noise immunity: VNIH = VNIL = 28% VCC (min); (4)Power down protection is equipped with all inputs.; (5)Balanced propagation delays: tpLH −∼ tpHL; (6)Wide operating voltage range: VCC (opr)= 2 to 5.5 V; (7)Pin and function compatible with TC74VHC221AFT.
