Product Summary

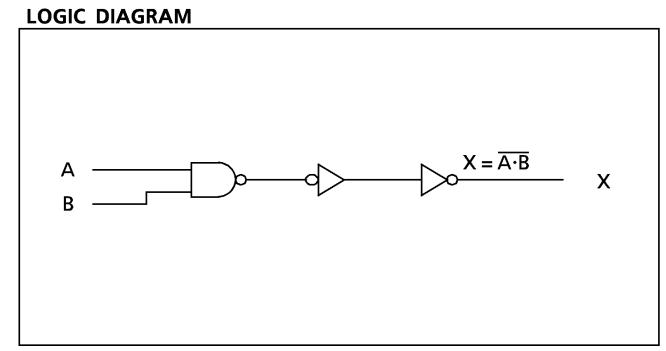

The tc4011bfn is a 2-input positive logic NAND gate respectively. Since all the outputs of the tc4011bfn are provided with the inverters as buffers, the input/output characteristics have been improved and the variation of propagtion delay time due to the increase in load capacity is kept down to the minimum.
Parametrics
tc4011bfn absolute maximum ratings: (1)DC supply voltage, VDD: VSS-0.5 to VSS+20V; (2)input voltage, VIN: VSS-0.5 to VDD+0.5V; (3)output voltage, VOUT: VSS-0.5 to VDD+0.5V; (4)DC input current, IIN: ±10mA; (5)power dissipation, PD: 300mW; (6)operating temperature range, Topr: -40 to 85℃; (7)storage temperature range, Tstg: -65 to 150℃.
Features
tc4011bfn features: (1)DC supply voltage, VDD: 3 to 18V; (2)input voltage, VIN: 0 to VDD.
Diagrams
