Product Summary
The ta75902f is a quad operational amplifier.
Parametrics
ta75902f absolute maximum ratings: (1)supply voltage, VCC, VEE: ±18 or 36V; (2)differential input voltage, DVIN: ±36V; (3)input voltage, VIN: -0.3 to 36V; (4)power dissipation, PD: 625mW; (5)operating temperature, Topr: -40 to 85℃; (6)storage temperature, Tstg: -55 to 125℃.
Features
ta75902f features: (1)in the linear mode the input common mode voltage range includes ground; (2)for internally compensated OP amps are in single package; (3)low power dissipation and power drain suitable for battery operation; (4)differential input voltage range equal to the power supply voltage; (5)large output swing: 0V to VCC-1.5V; (6)wide power supply voltage range and signal power supply: single supply: 3 to 36V; dual supplies: ±1.5 to 18V; (7)low input biasing current: II=45nA typ.

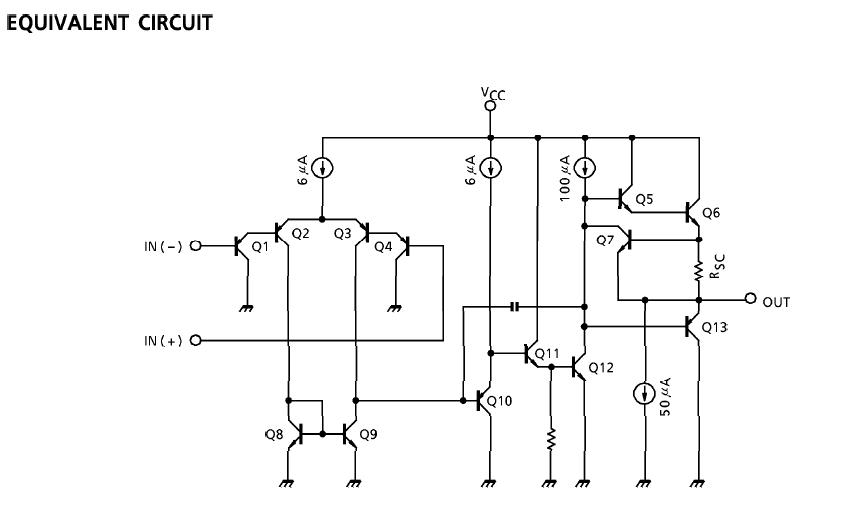

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
TA75902F |
Other |
Data Sheet |
Negotiable |
|
||||||
