SN74LVC2G04DBVR

SN74LVC2G04DBVR, inverter, 50 mA, 6.5 V, 4.1 ns, ssop

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.13~0.13 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 9000 :	0.13 / Piece

PartNumber:: SN74LVC2G04DBVR

Brand:: Texas Instruments - TI | Pack: | D/C: 10+

Availability:: Supply Ability: 9000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-02

From Other Seller

Part Number:SN74LVC2G04DBVR
US $0.13 - 0.13
Quantity:

piece

Product Summary

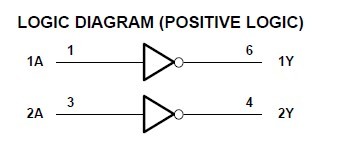

The sn74lvc2g04dbvr is a dual inverter. The sn74lvc2g04dbvr is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC2G04 performs the Boolean function Y = A. NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. The sn74lvc2g04dbvr is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Parametrics

sn74lvc2g04dbvr absolute maximum ratings: (1)VCC Supply voltage range: -0.5 to 6.5 V; (2)VI Input voltage range: -0.5 to 6.5 V; (3)VO Voltage range applied to any output in the high-impedance or power-off state: -0.5 to 6.5 V; (4)VO Voltage range applied to any output in the high or low state: -0.5 to VCC + 0.5 V; (5)IIK Input clamp current VI < 0: -50 mA; (6)IOK Output clamp current VO < 0: -50 mA; (7)IO Continuous output current: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA; (9)Tstg Storage temperature range: -65 to 150 °C.

Features

sn74lvc2g04dbvr features: (1)Available in the Texas Instruments NanoStar and NanoFree Packages; (2)Supports 5-V VCC Operation; (3)Inputs Accept Voltages to 5.5 V; (4)Max tpd of 4.1 ns at 3.3 V; (5)Low Power Consumption, 10-mA Max ICC; (6)±24-mA Output Drive at 3.3 V; (7)Typical VOLP (Output Ground Bounce)<0.8 V at VCC = 3.3 V, TA = 25°C; (8)Typical VOHV (Output VOH Undershoot)>2 V at VCC = 3.3 V, TA = 25°C; (9)Ioff Supports Partial-Power-Down Mode Operation; (10)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (11)ESD Protection Exceeds JESD 22.
